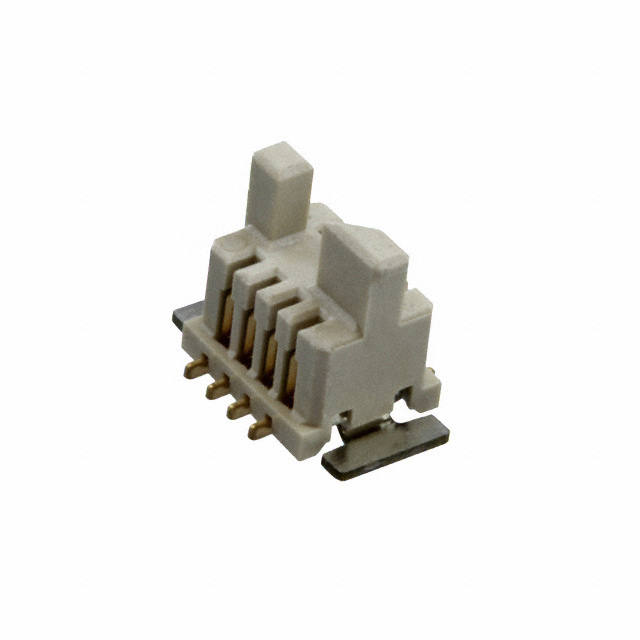

1375870-2
Or copy the link below:
- Mfr.Part #
- 1375870-2
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT 8POS 0.031 GOLD SMD
- Stock
- 1,887
- In Stock ：
- 1,887
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Receptacles, Female Sockets
- Insulation Resistance :
- 500MOhm
- Approval Agency :
- UL
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Insulation Color :
- Natural
- Mount :
- Surface Mount
- Fastening Type :
- Friction Lock
- Material Flammability Rating :
- UL94 V-0
- PCB Mount Retention :
- With
- Wire/Cable Type :
- Discrete
- Contact Gender :
- FEMALE
- Voltage - Rated AC :
- 30V
- ELV :
- Non-Compliant
- Contact Plating :
- Gold, Tin
- Feature :
- Solder Retention
- Packaging :
- Cut Tape (CT)
- Connector Type :
- Receptacle
- Style :
- Board to Cable/Wire
- Contact Material :
- Phosphor Bronze
- ECCN Code :
- EAR99
- RoHS Status :
- Non-RoHS Compliant
- Radiation Hardening :
- No
- Series :
- AMPMODU Micro
- Termination :
- Solder
- Operating Temperature :
- -55°C~85°C
- Orientation :
- Vertical
- Flammability Rating :
- UL94 V-0
- Voltage - Rated :
- 30VAC
- Current Rating :
- 750mA
- Lead Free :
- Contains Lead
- Number of Positions Loaded :
- All
- Factory Lead Time :
- 14 Weeks
- Number of Rows :
- 2
- Mounting Type :
- Surface Mount
- Contact Finish Thickness - Mating :
- 30.0μin 0.76μm
- Contact Finish Thickness - Post :
- 5.11μin 0.130μm
- Color :
- Beige
- Number of Positions :
- 8
- Contact Current Rating :
- 1A
- Contact Type :
- Female Blade Socket
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Pitch - Mating :
- 0.031 0.80mm
- Housing Material :
- Polymer
- Published :
- 2009
- Mating Retention :
- Without
- Contact Finish - Mating :
- Gold
- Insulation Height :
- 0.197 5.00mm
- Lifecycle Status :
- ACTIVE (Last Updated: 1 day ago)
- Operating Supply Voltage :
- 30V
- Datasheets
- 1375870-2
2 Rows Receptacle Solder Phosphor Bronze Surface Mount Cut Tape (CT) Gold Liquid Crystal Polymer (LCP) 8 Positions Female Blade Socket
1375870-2 Overview
This product is packaged in a Receptacle box.Surface Mount indicates that the device is mounted.An Cut Tape (CT) case is utilized for packaging the product.The product is a part of the AMPMODU Micro Series.In many ways, Solder Retention makes it more powerful.By Surface Mount, the part is mounted.The operating voltage of this memory is 30V.Operating temperature is set to -55°C~85°C.
1375870-2 Features
AMPMODU Micro series
1375870-2 Applications
There are a lot of TE Connectivity AMP Connectors
1375870-2 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
