1375800-1

Share

Or copy the link below:

Mfr.Part #
1375800-1
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN NON-STKTHR PC/104+ 120P PCB
Stock
6
In Stock :
6

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Specialized
Published :
2008
Durability :
50 Cycles
Orientation :
Straight
Connector Style :
PC/104 Plus
Number of Positions Loaded :
All
Body Breadth :
0.315 inch
Contact Pattern :
RECTANGULAR
PCB Contact Row Spacing :
2.0066 mm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Contact Material :
Bronze
PCB Contact Pattern :
RECTANGULAR
Pitch :
0.079 2.00mm
Keyed :
No
ECCN Code :
EAR99
Number of Conductors :
ONE
Depth :
8mm
Operating Temperature :
-55°C~105°C
Option :
GENERAL PURPOSE
Plating Thickness :
15μin
Lead Pitch :
2mm
Factory Lead Time :
28 Weeks
Housing Material :
Nylon
RoHS Status :
Non-RoHS Compliant
ELV :
Non-Compliant
Pbfree Code :
yes
Number Of PCB Rows :
4
Lead Length :
2.8448mm
Length :
60.2mm
Material Flammability Rating :
UL94 V-0
Mounting Type :
Through Hole
Insertion Force-Max :
1.251 N
MIL Conformance :
No
Gender :
Receptacle
Contact Finish Thickness :
15.0μin 0.38μm
Rated Current (Signal) :
2A
Series :
AMPMODU
Insulation Resistance :
1GOhm
Color :
Black
Polarization Key :
POLARIZED HOUSING
Number of Positions :
120
Number of Rows :
4
Contact Style :
SQ PIN-SKT
Filter Feature :
No
Mixed Contacts :
No
Packaging :
Bulk
Reference Standard :
UL
IEC Conformance :
No
Flammability Rating :
UL94 V-0
Lead Free :
Contains Lead
DIN Conformance :
No
Reliability :
COMMERCIAL
Total Number of Contacts :
120
Connector Type :
Non-Stackthrough, Unkeyed (PC/104)
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Mount :
Press Fit, Through Hole
Termination :
Press-Fit
Mating Contact Row Spacing :
0.079 inch
Withdrawl Force-Min :
.6672 N
Contact Finish :
Gold
Contact Resistance :
10MOhm
Dielectric Withstanding Voltage :
500VAC V
Datasheets
1375800-1
Introducing Specialized TE Connectivity AMP Connectors 1375800-1 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-55°C~105°C, Mounting Type:Through Hole, 1375800-1 pinout, 1375800-1 datasheet PDF, 1375800-1 amp .Beyond Specialized TE Connectivity AMP Connectors 1375800-1 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

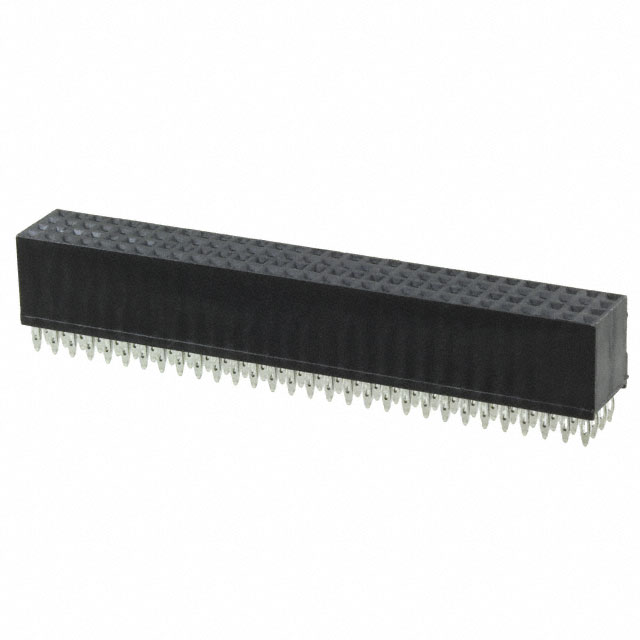

TE Connectivity AMP Connectors 1375800-1


AMPMODU Series Non-Stackthrough, Unkeyed (PC/104) Press-Fit Gold Black 15.0μin 0.38μm 120 Positions Pitch: 0.079 2.00mm -55°C~105°C Bulk Through Hole

1375800-1 Overview


Packaging is in the form of Non-Stackthrough, Unkeyed (PC/104).This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the AMPMODU Series.There is a mounting hole at Press Fit, Through Hole.Devices operate at -55°C~105°C operating temperatures.

1375800-1 Features


AMPMODU series


1375800-1 Applications


There are a lot of TE Connectivity AMP Connectors
1375800-1 Backplane Connectors applications.


  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
  • Energy efficient lighting (LED)
  • LED municipal outdoor and street lighting
  • All Electrical Machinery
