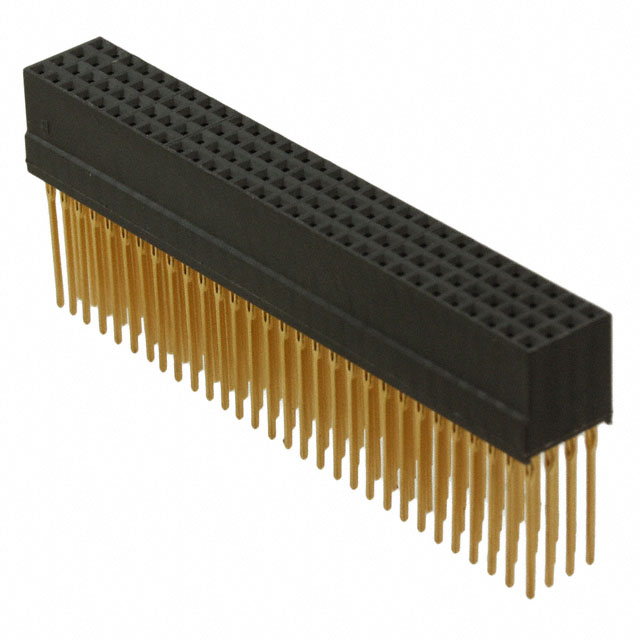

1375799-1
Or copy the link below:
- Mfr.Part #
- 1375799-1
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN STKTHRU PC/104+ 120POS PCB
- Stock
- 9,494
- In Stock ：
- 9,494
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Specialized
- Number Of PCB Rows :
- 4
- MIL Conformance :
- No
- ELV :
- Compliant
- Operating Temperature :
- -55°C~105°C
- Polarization Key :
- POLARIZED HOUSING
- Pbfree Code :
- yes
- Connector Style :
- PC/104 Plus
- PCB Contact Row Spacing :
- 2.0066 mm
- Insertion Force-Max :
- 1.251 N
- Durability :
- 50 Cycles
- Dielectric Withstanding Voltage :
- 500VAC V
- Housing Material :
- Nylon
- Body Breadth :
- 0.315 inch
- IEC Conformance :
- No
- Gender :
- Receptacle
- Number of Positions :
- 120
- Mount :
- Press Fit, Through Hole
- Total Number of Contacts :
- 120
- Number of Conductors :
- ONE
- Contact Pattern :
- RECTANGULAR
- Current Rating :
- 3A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Withdrawl Force-Min :
- .6672 N
- Reliability :
- COMMERCIAL
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Number of Positions Loaded :
- All
- Contact Resistance :
- 10MOhm
- Option :
- GENERAL PURPOSE
- Contact Finish :
- Gold
- Length :
- 60.3mm
- Mounting Type :
- Through Hole
- DIN Conformance :
- No
- Plating Thickness :
- 15μin
- ECCN Code :
- EAR99
- Factory Lead Time :
- 28 Weeks
- Approval Agency :
- cULus
- REACH SVHC :
- Unknown
- Material Flammability Rating :
- UL94 V-0
- Series :
- AMPMODU
- Reference Standard :
- UL
- Mixed Contacts :
- No
- Number of Rows :
- 4
- Packaging :
- Bulk
- PCB Contact Pattern :
- RECTANGULAR
- RoHS Status :
- RoHS Compliant
- Contact Material :
- Bronze
- Published :
- 2007
- Lead Length :
- 12.5222mm
- Contact Finish Thickness :
- 15.0μin 0.38μm
- Insulation Resistance :
- 1GOhm
- Rated Current (Signal) :
- 2A
- Depth :
- 8.39mm
- Connector Type :
- Stackthrough, Unkeyed (PC/104)
- Mating Contact Row Spacing :
- 0.079 inch
- Pitch :
- 0.079 2.00mm
- Contact Gender :
- FEMALE
- Termination :
- Press-Fit, Long Post
- Keyed :
- No
- Color :
- Black
- Orientation :
- Straight
- Contact Style :
- SQ PIN-SKT
- Datasheets
- 1375799-1
AMPMODU Series Stackthrough, Unkeyed (PC/104) Press-Fit, Long Post Gold Black 15.0μin 0.38μm 120 Positions Pitch: 0.079 2.00mm -55°C~105°C Bulk Through Hole
1375799-1 Overview
The product comes in a package of Stackthrough, Unkeyed (PC/104).Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the AMPMODU Series.It is mounted by Press Fit, Through Hole.It operates at an operating temperature of -55°C~105°C.
1375799-1 Features
AMPMODU series
1375799-1 Applications
There are a lot of TE Connectivity AMP Connectors
1375799-1 Backplane Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
