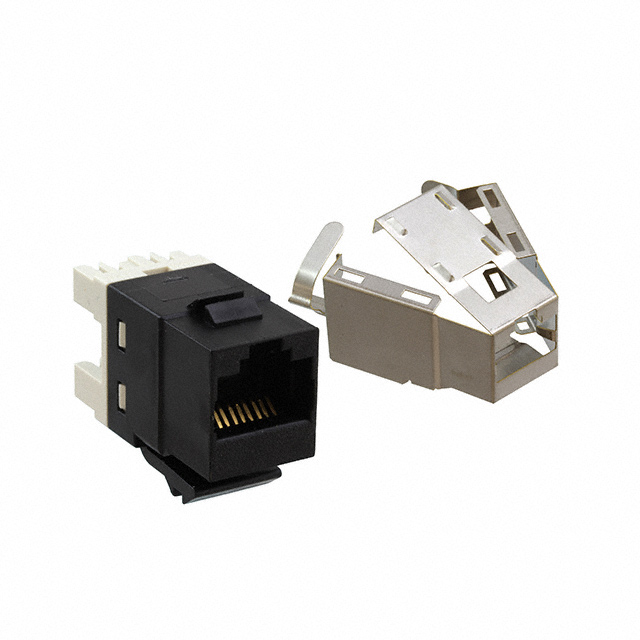

1375188-1

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Keystone Inserts

Total Number of Contacts :

8

Packaging :

Bulk

Keyed :

No

Shielding :

Shielded

Durability :

750 Cycles

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e3

Exterior Housing Material :

Polycarbonate (PC)

Mount :

Cable, Panel

Reference Standard :

UL

Flammability Rating :

UL94 V-0

Exterior Type (Adapter End) :

Modular Jack 8p8c (RJ45, Ethernet)

Contact Resistance :

20mOhm

Housing Material :

Polycarbonate

Exterior Housing Color :

Black

Shell Finish :

Nickel

Exterior Contact Material :

BERYLLIUM COPPER

Direction :

User Selectable

Filter Feature :

No

Number of Positions Loaded :

8

Exterior Contact Finish Thickness :

50μin 1.27μm

Contact Material :

Copper

Number of Ports :

1

UL Flammability Code :

94V-0

Option :

GENERAL PURPOSE

Insulation Resistance :

500000000Ohm

Exterior Contact Finish :

Gold

Number of Rows :

1

Factory Lead Time :

2 Weeks

Reliability :

COMMERCIAL

Depth :

30.48mm

Pbfree Code :

yes

Ratings :

Cat6

Mixed Contacts :

No

Style :

Modular

ECCN Code :

EAR99

Empty Shell :

No

Termination :

IDC

Length :

14.48mm

IEC Conformance :

No

Connector Type :

TELECOM AND DATACOM CONNECTOR

Series :

SL 110Connect

Plating Thickness :

1.27μm

Interior Type (Adapter End) :

IDC, Pressdown, Punchdown Block

DIN Conformance :

No

MIL Conformance :

No

Operating Temperature :

-10°C~60°C

RoHS Status :

RoHS Compliant

Orientation :

Straight

Published :

2004

Gender :

FEMALE

ELV :

Compliant
