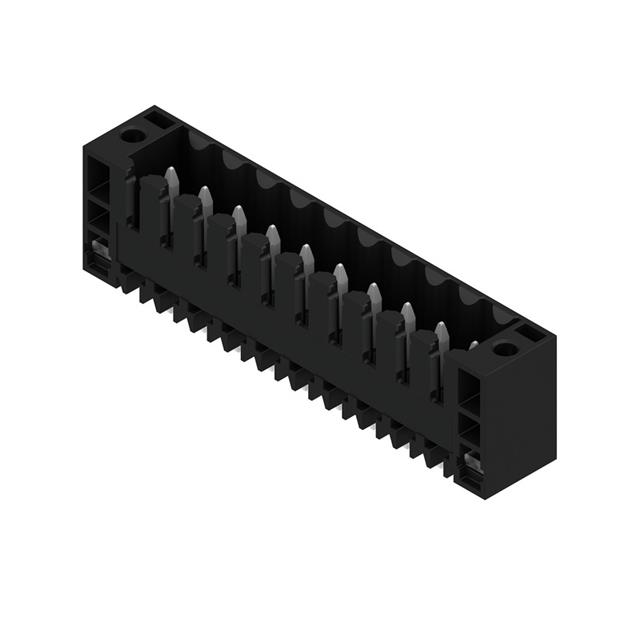

1374160000

Manufacturer :

Weidmuller

Product Category :

Headers, Plugs and Sockets

Voltage - UL :

300V

Pbfree Code :

yes

Color :

Orange

Packaging :

Bulk

Radiation Hardening :

No

Contact Mating Finish :

Tin

DIN Conformance :

No

Pitch :

0.200 5.08mm

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

MIL Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Insulation Height :

1.070 27.18mm

Current - IEC :

10A

Number of Levels :

2

Total Number of Contacts :

42

Positions Per Level :

21

Mount :

Through Hole

Operating Temperature :

-50°C~120°C

Header Orientation :

90°, Right Angle

Gender :

Male

Feature :

Interlocking (Side)

Voltage - IEC :

400V

Series :

Unimate SLA

Housing Material :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Contact Tail Length :

0.126 3.20mm

IEC Conformance :

No

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Factory Lead Time :

12 Weeks

Type :

Header, Male Pins, Shrouded (2 Side)

RoHS Status :

RoHS Compliant

Number of Positions :

42

Contact Material :

COPPER ALLOY

Number of Rows :

2

Termination Style :

Solder

JESD-609 Code :

e3
