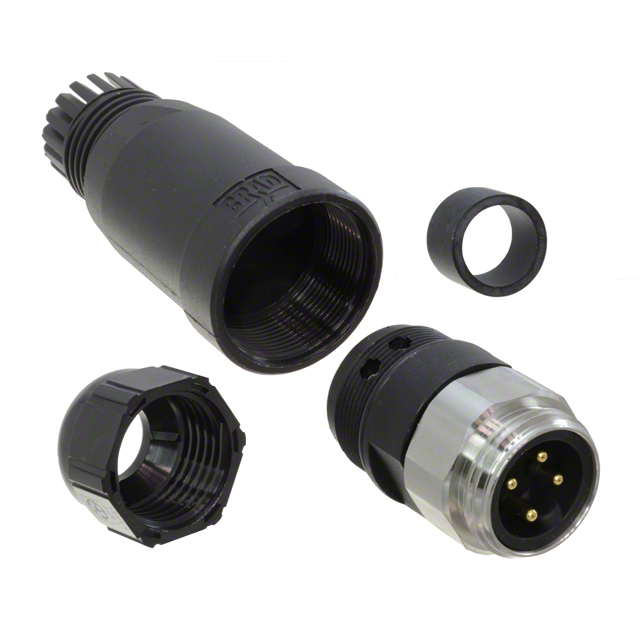

1300170021
Or copy the link below:
- Mfr.Part #
- 1300170021
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT MALE 4POS GOLD SCREW
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Circular Connector Assemblies
- Number of Positions :
- 4
- Mounting Type :
- Free Hanging (In-Line)
- Fastening Type :
- Threaded
- Published :
- 2012
- Contact Finish - Mating :
- Gold
- Applications :
- Industrial
- Shell Material :
- Stainless Steel
- Moisture Sensitivity Level (MSL) :
- Not Applicable
- Factory Lead Time :
- 10 Weeks
- RoHS Status :
- Non-RoHS Compliant
- Series :
- Brad Mini-Change 130017
- Contact Gender :
- Male
- Cable Opening :
- 0.200 ~ 0.450 (5.08mm ~ 11.43mm)
- Orientation :
- Keyed
- Current Rating (Amps) :
- 8A 13A
- ELV :
- Compliant
- Termination :
- Screw
- Shielding :
- Unshielded
- Current Rating :
- 10A
- Contact Material :
- COPPER ALLOY
- Insert Material :
- Polyamide (PA), Nylon
- Backshell Material, Plating :
- Polyamide (PA), Nylon
- Feature :
- Backshell
- Wire Gauge (Max) :
- 15 AWG
- Shell Finish :
- Passivated
- Packaging :
- Bulk
- Color :
- Black, Silver
- Operating Temperature :
- -20°C~80°C
- Voltage - Rated :
- 600VAC/DC
- Ratings :
- IP67
- Connector Type :
- Receptacle, Male Pins
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Wire Gauge (Min) :
- 24 AWG
- Datasheets
- 1300170021
Receptacle, Male Pins Stainless Steel Free Hanging (In-Line) 4 Positions Screw Gold Passivated Bulk Keyed Threaded
1300170021 Overview
Packaging is in the form of Receptacle, Male Pins.This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Brad Mini-Change 130017 Series.Several benefits come from the Backshell feature.Devices operate at -20°C~80°C operating temperatures.
1300170021 Features
Brad Mini-Change 130017 series
1300170021 Applications
There are a lot of Molex
1300170021 Circular Connectors applications.
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
You may place an order without registering to Chip IC. We strongly recommend that you log in before purchasing as you can track your order at any time.
RFQ (Request for Quotations)It is recommended to send RFQ to get the latest prices and stock availability about the part.Our sales will reply to your inquiry within 24 hours.
Payment MethodFor your convenience, we accept multiple payment methods in USD, Such as:PayPal, Credit Card, and wire transfer.
IMPORTANT NOTICEYou may place an order without registering to 1. You'll receive an order confirmations by e-mail soon . (Please remember to check the spam box if you didn't hear from us). 2. Since stock availability and prices may change at any time, the sales will reconfirm the order details and update you at soonest time.
Most of our products are shipped via FEDEX,DHL,UPS and SF EXPRESS...
Shipping CostShipping Cost starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).If customer have shipping account, we can make shipment under customer’s shipping account with freight collect directly.
The basic freight (for package ≤0.5 KG ) depends on the time zones and countries
Once the goods are shipped, estimated delivery time depends on the shipping methods you chose. You can track it by the tracking no.
