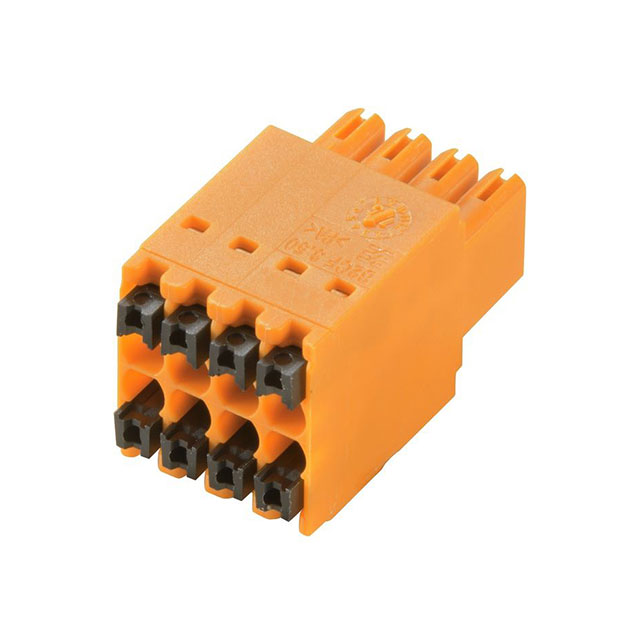

1277290000
Or copy the link below:
- Mfr.Part #
- 1277290000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- TERM BLOCK PLUG 8POS STR 3.5MM
- Stock
- 170
- In Stock ：
- 170
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Headers, Plugs and Sockets
- Plug Wire Entry :
- 180°
- Number of Levels :
- 2
- Voltage - Rated :
- 300V
- Current - UL :
- 9.5A
- Number of Rows :
- 1
- Color :
- Orange
- Mount :
- Free Hanging
- Wire Gauge (Min) :
- 16 AWG
- Operating Temperature :
- -50°C~120°C
- Termination :
- Screwless
- Type :
- Plug, Female Sockets
- RoHS Status :
- RoHS Compliant
- Number of Positions :
- 8
- Termination Style :
- Screwless - Leg Spring, Push-In Spring
- Pitch :
- 0.138 3.50mm
- Contact Mating Finish :
- Tin
- Series :
- Omnimate B2CF
- Packaging :
- Bulk
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 10A
- Contact Material :
- COPPER ALLOY
- Stripping Length :
- 10mm
- Housing Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Voltage - IEC :
- 320V
- Ingress Protection :
- IP20
- Current - IEC :
- 13.4A
- Wire Gauge or Range - mm² :
- 0.14-1.5mm2
- Positions Per Level :
- 4
- Factory Lead Time :
- 16 Weeks
- Insulation Height :
- 0.598 15.19mm
- Voltage :
- 300V
- Flammability Rating :
- UL94 V-0
- Insulation Material :
- Nylon
- Mounting Type :
- Free Hanging (In-Line)
- Wire Gauge or Range - AWG :
- 16-26 AWG
- Material Flammability Rating :
- UL94 V-0
- ECCN Code :
- EAR99
- Wire Gauge (Max) :
- 26 AWG
- Current :
- 10A
- Datasheets
- 1277290000
Bulk 0.138 3.50mm Orange 2 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate B2CF Polyamide (PA66), Nylon 6/6, Glass Filled Tin Copper Alloy
1277290000 Overview
The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.A product of the Omnimate B2CF Series, it belongs to the range of products of that series.Free Hanging represents the mounting point for the part.-50°C~120°C Operating Temperature is the default operating temperature for the device.As with other Plug, Female Sockets products, this part also offers a wide range of benefits.
1277290000 Features
Omnimate B2CF series
1277290000 Applications
There are a lot of Weidmüller
1277290000 Terminal Blocks applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
