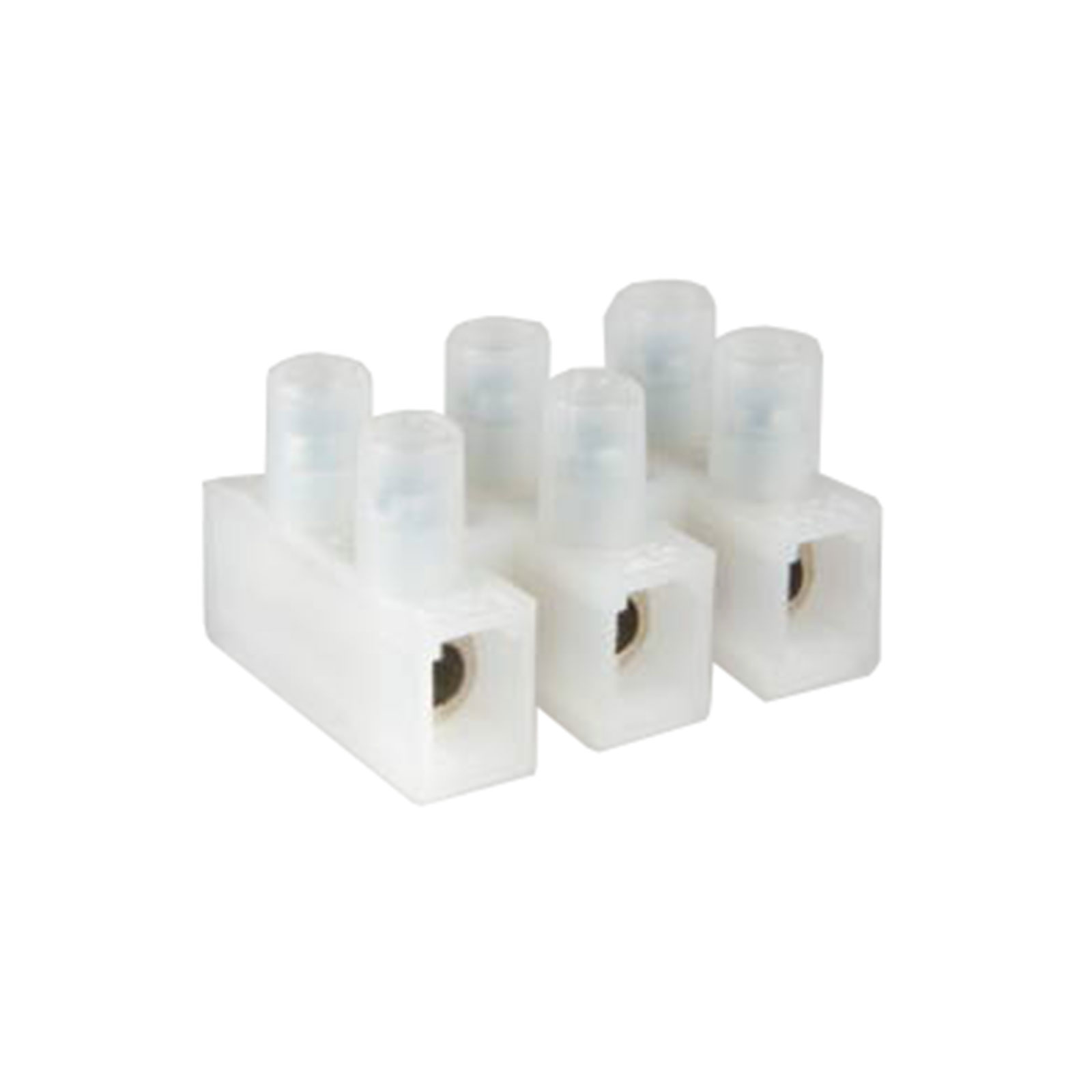

125203

Manufacturer :

Adels-Contact

Product Category :

Barrier Blocks

Terminal Block Type :

Eurostyle Terminal Strip

Number of Circuits :

3

Mounting Type :

Chassis, Panel

Nominal current (details) :

25A

Series :

-

Cross section (inflexible) (max.) :

6mm²

Terminal Screw Material :

-

Material - Insulation :

Polyamide (PA6), Nylon 6

Nominal current :

25A

Pitch :

0.472 (12.00mm)

Terminal Screw Finish :

-

Barrier Type :

Enclosed

Voltage Rating :

500V

Color :

Natural

Type :

1000/3

Nominal voltage :

500V

Number of Rows :

2

Connection :

-

Nominal voltage (details) :

500V

Features :

-

Wire Gauge :

8-20 AWG

Content :

1pc(s)

Nominal current - rounded value :

25A

Wire protection :

No

Bottom Termination :

Closed

Manufacturer part # :

125203

Operating Temperature :

85°C

Top Termination :

Screws

Number of Wire Entries :

6

Material Flammability Rating :

UL94 V-2

Current Rating (Amps) :

41A

Product Status :

Active

Package :

Bulk

Cross section (flexible) (max.) :

6mm²

Material (details) :

Polyamide 6
