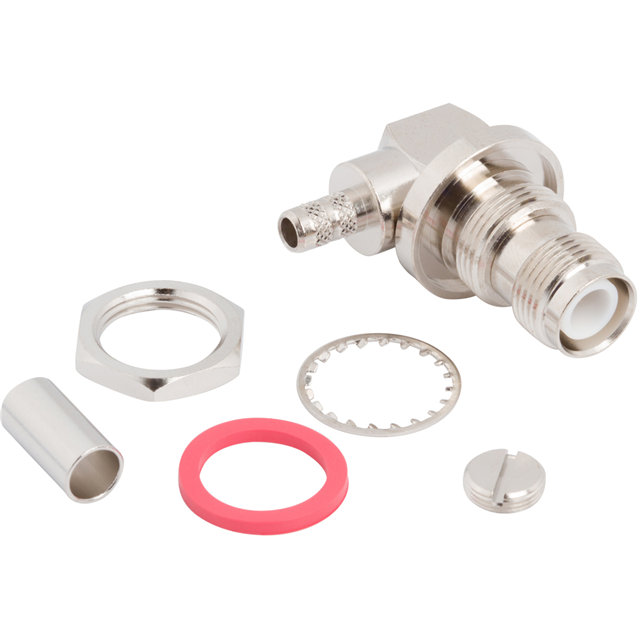

122500RP
Or copy the link below:
- Mfr.Part #
- 122500RP
- Manufacturer
- Amphenol RF
- Package / Case
- Datasheet
- Download
- Description
- CONN RPTNC JACK R/A 50OHM SOLDER
- Stock
- 17,783
- In Stock ：
- 17,783
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Amphenol RF
- Product Category :
- Coaxial Connector (RF) Assemblies
- Insertion Loss :
- 0.18dB
- Contact Termination :
- Solder
- Max Operating Temperature :
- 165°C
- Cable Group :
- RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907
- Packaging :
- Bulk
- Published :
- 2011
- Mating Cycles :
- 500
- Radiation Hardening :
- No
- Body Finish :
- Nickel
- Voltage - Rated :
- 500V
- Center Contact Material :
- Brass
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mounting Type :
- Panel Mount, Right Angle
- Connector Type :
- Jack, Male Pin
- Factory Lead Time :
- 10 Weeks
- Frequency (Max) :
- 11GHz
- Mounting Feature :
- Bulkhead - Front Side Nut
- Body Plating :
- Nickel
- Housing Color :
- Silver
- Polarity :
- Standard
- Contact Material :
- Brass
- Frequency :
- 11GHz
- Number of Ports :
- 1
- Center Contact Plating :
- Gold
- Operating Temperature :
- -65°C~165°C
- Min Operating Temperature :
- -65°C
- RoHS Status :
- RoHS Compliant
- Connector Style :
- RP-TNC
- Termination :
- Solder
- Includes :
- 5 pcs - 1 Connector, 1 End Cap, 1 Gasket, 1 Lockwasher, 1 Nut
- Orientation :
- RIGHT ANGLE
- Body Material :
- Brass
- Contact Plating :
- Gold
- Impedance :
- 50Ohm
- Shield Termination :
- Crimp
- Mount :
- Bulkhead, Cable, Panel
- Dielectric Material :
- Polytetrafluoroethylene (PTFE)
- Fastening Type :
- Threaded
- Datasheets
- 122500RP
122500RP Documents
Jack, Male Pin Threaded 50Ohm Bulk RP-TNC Solder 1 Port Polytetrafluoroethylene (PTFE) -65°C~165°C
122500RP Overview
The product comes in a package of Jack, Male Pin.Its mounting type is Panel Mount, Right Angle.Packaging is performed using a Bulk case.Whenever it's below 165°C, it's best to use it.The device must operate at a temperature of -65°C at all times.The device is equipped with 1 ports for the management of a variety of tasks.Bulkhead, Cable, Panel mounts the part.There is no operating temperature for the device.Performing well when operated at frequency 11GHz can be achieved.
122500RP Features
122500RP Applications
There are a lot of Amphenol RF
122500RP Coaxial Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
