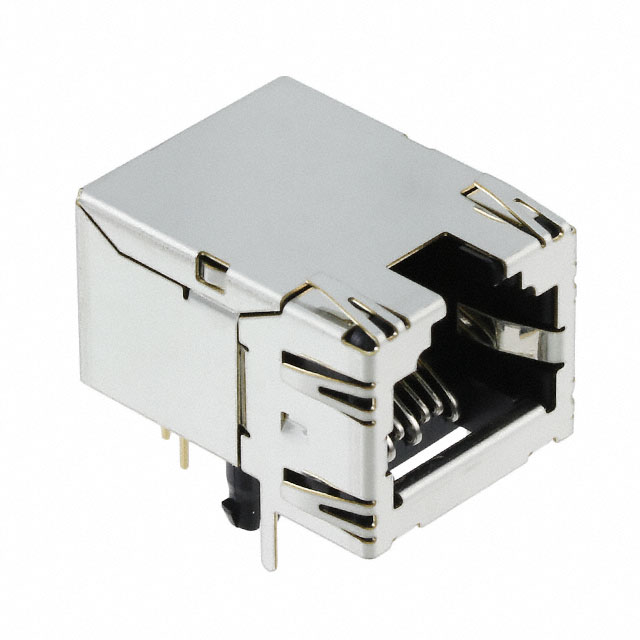

09350022101
Or copy the link below:
- Mfr.Part #
- 09350022101
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN MOD JACK 8P8C R/A SHIELDED
- Stock
- 714
- In Stock ：
- 714
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Modular Connector Jacks
- Number of Positions/Contacts :
- 8p8c (RJ45, Ethernet)
- Depth :
- 21mm
- Termination :
- Solder
- Operating Temperature :
- -40°C~70°C
- Voltage - Rated :
- 125V
- Total Number of Contacts :
- 8
- Packaging :
- Bulk
- Pitch :
- 2.54mm
- Ingress Protection :
- IP20
- MIL Conformance :
- No
- Tab Direction :
- UP
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Finish - Mating :
- NOT SPECIFIED
- Filter Feature :
- No
- Mixed Contacts :
- No
- Series :
- Han® PushPull
- Connector Type :
- JACK
- Feature :
- Board Lock
- Weight :
- 5.179997g
- LED Color :
- Does Not Contain LED
- Empty Shell :
- No
- Number of Positions :
- 8
- RoHS Status :
- ROHS3 Compliant
- Shielding :
- Shielded, EMI Finger
- Mount :
- Through Hole
- ECCN Code :
- EAR99
- Contact Material :
- NOT SPECIFIED
- Orientation :
- 90° Angle (Right)
- Factory Lead Time :
- 7 Weeks
- Current Rating :
- 1.5A
- Number of Ports :
- 1
- Lead Free :
- Lead Free
- DIN Conformance :
- No
- IEC Conformance :
- No
- Mounting Type :
- Through Hole
- Option :
- GENERAL PURPOSE
- Pbfree Code :
- yes
- Gender :
- FEMALE
- Ratings :
- Cat6
- Datasheets
- 09350022101
09350022101 Documents
Han® PushPull Jack Bulk Shielded, EMI Finger 8p8c (RJ45, Ethernet) 1 Port 90° Angle (Right) Solder Through Hole -40°C~70°C
09350022101 Overview
The connector type Jack refers to the connector type.The device's mounting type is Through Hole.In order to package the product, a Bulk case is used.It belongs to the Han® PushPull Series of products.It features 1 ports for managing a variety of tasks.Its Board Lock feature renders it more powerful in many ways.The part is mounted by Through Hole.The device runs in -40°C~70°C Operating Temperature.
09350022101 Features
Han® PushPull series
09350022101 Applications
There are a lot of HARTING
09350022101 Modular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
