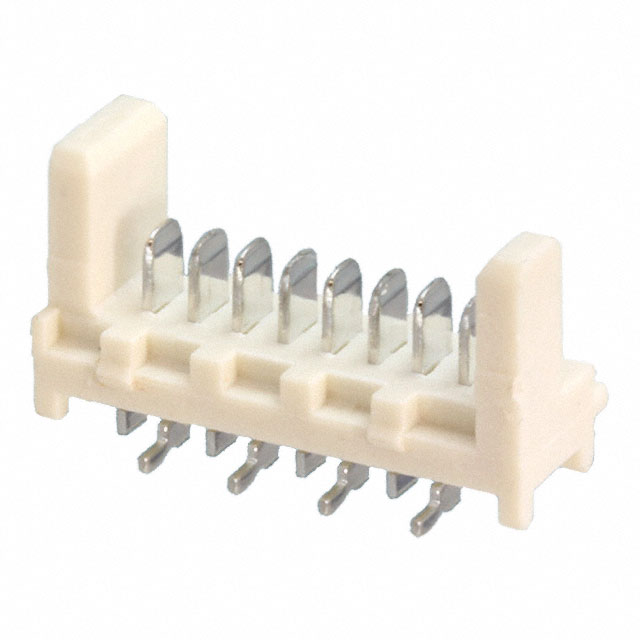

0934050508

Manufacturer :

Molex

Product Category :

Headers, Male Pins

Termination :

Solder

Number Of PCB Rows :

2

RoHS Status :

ROHS3 Compliant

Series :

Picoflex 93405

Total Number of Contacts :

8

Mounting Type :

Surface Mount

Pitch - Mating :

0.050 1.27mm

Shrouding :

Shrouded - 2 Wall

Contact Finish Thickness - Post :

118.1μin 3.00μm

Voltage - Rated :

250V

Connector Type :

Header

Contact Finish Thickness - Mating :

118.1μin 3.00μm

Mating Contact Pitch :

0.05 inch

Insulation Color :

Natural

Mounting Option 1 :

LOCKING

Fastening Type :

Push-Pull

Material Flammability Rating :

UL94 V-0

Packaging :

Tape and Reel (TR)

Contact Finish - Mating :

Tin

Dielectric Withstanding Voltage :

750VAC V

Number of Positions :

8

Current Rating (Amps) :

1.2A

Contact Material :

Cartridge Brass

Number of Conductors :

ONE

Applications :

Automotive, General Purpose, Industrial, Medical

ECCN Code :

EAR99

Style :

Board to Cable/Wire

Contact Shape :

RECTANGULAR

Number of Positions Loaded :

All

Operating Temperature :

-40°C~105°C

Insulation Height :

0.203 5.16mm

Number of Rows :

1

Contact Length - Mating :

0.085 2.15mm

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Contact Type :

Male Blade

Insulation Material :

Polyamide (PA), Nylon, Glass Filled
