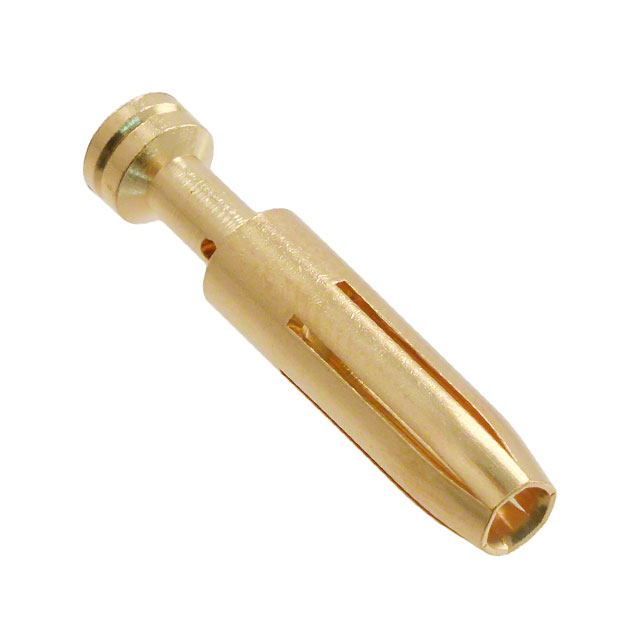

09330006215
Or copy the link below:
- Mfr.Part #
- 09330006215
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONTACT H.D. CRIMP SOCKET 18AWG
- Stock
- 13,306
- In Stock ：
- 13,306
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Contacts
- Voltage :
- 830V
- Contact Finish Thickness :
- 78.7μin 2.00μm
- Height :
- 4.5mm
- Max Current Rating :
- 16A
- Gender :
- FEMALE
- MIL Conformance :
- No
- Contact Finish :
- Gold
- Material :
- COPPER ALLOY
- Connector Type :
- Connector, Rectangular, Signal
- IEC Conformance :
- No
- Pin or Socket :
- Socket
- Contact Resistance :
- 1MOhm
- Wire Gauge :
- 18 AWG
- Wire/Cable Gauge :
- 18 AWG
- Shielding :
- Unshielded
- Max Operating Temperature :
- 125°C
- Series :
- Han®
- ECCN Code :
- EAR99
- Contact Termination :
- Crimp
- Voltage - Rated :
- 500V
- Wire Size (Max) :
- 10 AWG
- HTS Code :
- 8538.90.80.40
- Mount :
- CABLE
- Wire Size (Min) :
- 26 AWG
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Connector Support Type :
- CONNECTOR ACCESSORY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Assembly Item Name :
- Contact
- REACH SVHC :
- No SVHC
- Min Operating Temperature :
- -40°C
- Additional Feature :
- STANDARDS: DIN EN 60 664-1, DIN EN 61 984, UNDERPLATING THICKNESS: 118
- Packaging :
- Bulk
- Depth :
- 4.5mm
- Orientation :
- Straight
- Factory Lead Time :
- 4 Weeks
- DIN Conformance :
- yes
- Length :
- 22.2mm
- Current Rating :
- 16A
- Datasheets
- 09330006215
09330006215 datasheet pdf and Heavy Duty Connectors - Contacts product details from HARTING stock available at Xinshop
