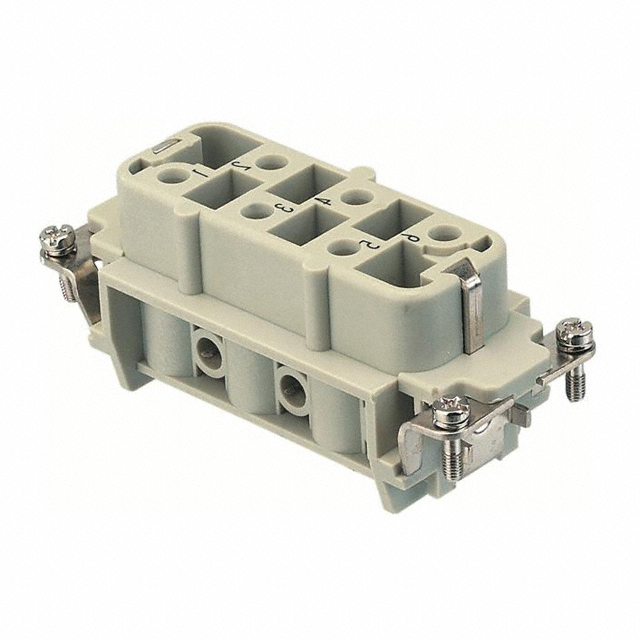

09310062701

Share

Or copy the link below:

Mfr.Part #
09310062701
Manufacturer
HARTING
Package / Case
Datasheet
Download
Description
INSERT FEMALE 6POS+1GND SCREW
Stock
7
In Stock :
7

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
HARTING
Product Category :
Heavy Duty Connector Inserts, Modules
Current Rating :
35A
Contact Resistance :
500000mOhm
Contact Material :
COPPER ALLOY
Gender :
FEMALE
Packaging :
Bulk
Total Number of Contacts :
6
Termination Style :
Screw
Mounting Type :
CABLE
Body/Shell Style :
PLUG
Operating Temperature :
-40°C~125°C
Size :
16b
IEC Conformance :
No
Reference Standard :
UL, CSA
Depth :
35.6mm
Material :
Thermoplastic
Pbfree Code :
yes
ECCN Code :
EAR99
Contact Finish :
Silver
Wire/Cable Gauge :
10 AWG
Series :
Han® HsB
Voltage - Rated DC :
380V
DIN Conformance :
No
Number of Positions :
6+Ground
REACH SVHC :
No SVHC
Reliability :
COMMERCIAL
Length :
84.5mm
Max Current Rating :
35A
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Flammability Rating :
UL94 V-0
Additional Feature :
RoHS Compliant
Number of Rows :
2
MIL Conformance :
No
Ratings :
IP65
Durability :
500 Cycles
Contact Style :
RND PIN-SKT
Connector Type :
INSERT
Color :
Gray
Mixed Contacts :
yes
Test Current :
35A
Option :
GENERAL PURPOSE
Body Breadth :
1.339 inch
Factory Lead Time :
4 Weeks
Number of Conductors :
ONE
Orientation :
Straight
RoHS Status :
ROHS3 Compliant
Material Flammability Rating :
UL94 V-0
Voltage - Rated AC :
380V
Mounting Option 1 :
M3
Housing Material :
Polycarbonate (PC)
Insulation Resistance :
10000000000Ohm
Working Voltage :
380V
Number of Poles :
6
Introducing Heavy Duty Connector Inserts, Modules HARTING 09310062701 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:CABLE, Operating Temperature:-40°C~125°C, 09310062701 pinout, 09310062701 datasheet PDF, 09310062701 amp .Beyond Heavy Duty Connector Inserts, Modules HARTING 09310062701 ,we also offer 09330242701, 09200162812, 09140083011, Our vast inventory has you covered. Contact us now for immediate solutions.

HARTING 09310062701
