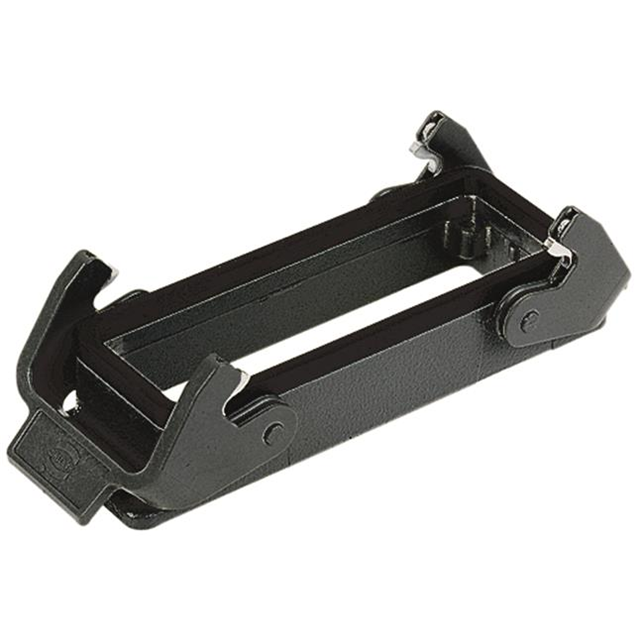

09307240301
Or copy the link below:
- Mfr.Part #
- 09307240301
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ24B
- Stock
- 7,237
- In Stock ：
- 7,237
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Orientation :
- Straight
- Operating Temperature :
- -40°C~125°C
- Housing Material :
- Aluminum, Die Cast
- Size :
- 24b
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Finish :
- Powder Coated
- Ratings :
- Dust Tight, IP65, Water Resistant
- Packaging :
- Bulk
- Height :
- 28.9052mm
- Factory Lead Time :
- 7 Weeks
- RoHS Status :
- ROHS3 Compliant
- Series :
- Han® B
- Size / Dimension :
- 5.512Lx1.709W x 1.138 H 140.00mmx43.40mmx28.90mm
- Housing Color :
- Black
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Connector Support Type :
- CONNECTOR ACCESSORY
- Connector Type :
- Base - Panel Mount
- Mount :
- Panel
- Lock Location :
- Locking Clip (2) on Base Bottom
- Style :
- Bottom Entry
- Datasheets
- 09307240301
09307240301 Documents
7 Weeks CONNECTOR ACCESSORY Bulk Han® B Base - Panel Mount Aluminum, Die Cast Bottom Entry Locking Clip (2) on Base Bottom -40°C~125°C Black
09307240301 Overview
The product comes in a package of Base - Panel Mount.Packaging is performed using a Bulk case.It is part of the Han® B Series of products.Panel mounts the part.There is no operating temperature for the device.
09307240301 Features
Han® B series
09307240301 Applications
There are a lot of HARTING
09307240301 Heavy Duty Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
