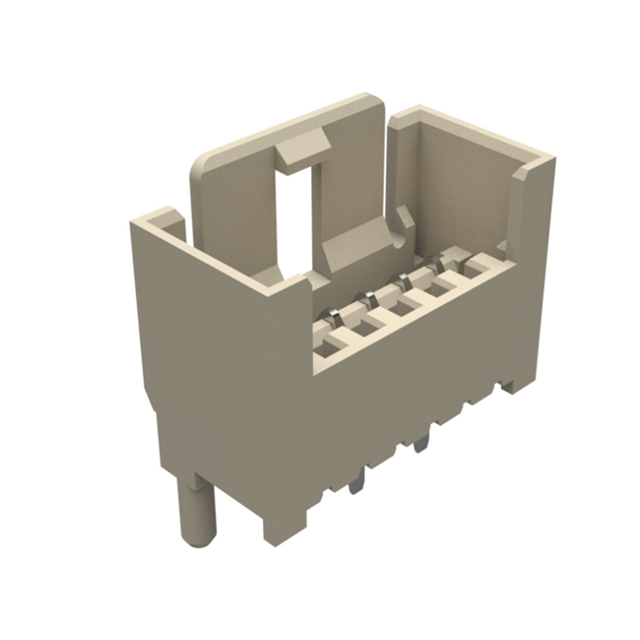

0930701501
Or copy the link below:
- Mfr.Part #
- 0930701501
- Manufacturer
- Molex
- Package / Case
- Datasheet
- Download
- Description
- RAST 2.5 HDR ASSY 6CKT W/
- Stock
- 5,900
- In Stock ：
- 5,900
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Molex
- Product Category :
- Headers, Male Pins
- Number of Rows :
- 1
- Contact Finish Thickness - Mating :
- 118.1µin (3.00µm)
- Features :
- Board Guide
- Connector Type :
- Header
- Fastening Type :
- Locking Ramp
- Mated Stacking Heights :
- -
- Row Spacing - Mating :
- -
- Insulation Color :
- Natural
- Applications :
- GENERAL PURPOSE
- Termination :
- Solder
- Contact Finish - Mating :
- Tin
- Contact Length - Post :
- 0.130 (3.30mm)
- Operating Temperature :
- -20°C ~ 120°C
- Contact Type :
- Center Strip Contact
- Contact Finish - Post :
- Tin
- Insulation Height :
- 0.602 (15.29mm)
- Contact Material :
- Brass
- Contact Shape :
- -
- Overall Contact Length :
- -
- Number of Positions :
- 6
- Product Status :
- Active
- Insulation Material :
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Shrouding :
- Shrouded - 4 Wall
- Current Rating (Amps) :
- 6A
- Mounting Type :
- Through Hole
- Style :
- Board to Cable/Wire
- Contact Finish Thickness - Post :
- 12.0µin (0.30µm)
- Pitch - Mating :
- 0.098 (2.50mm)
- Material Flammability Rating :
- UL94 V-0
- Contact Length - Mating :
- -
- Voltage Rating :
- 32V
- Number of Positions Loaded :
- All
- Ingress Protection :
- -
- Base Product Number :
- 093070
- Datasheets
- 0930701501
0930701501 Documents
1 Rows Header 6 Positions Through Hole Center Strip Contact
0930701501 Overview
This product is packaged in a Header box.Through Hole indicates that the device is mounted.
0930701501 Features
0930701501 Applications
There are a lot of Molex
0930701501 Rectangular Connectors applications.
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
