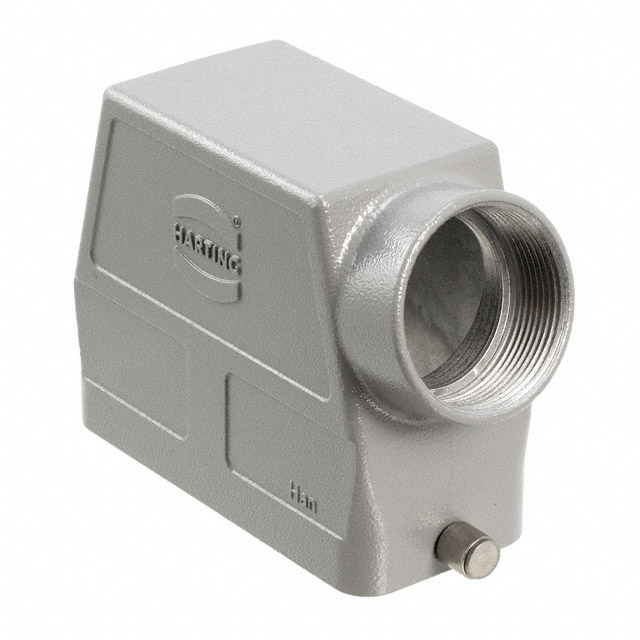

09300160541
Or copy the link below:
- Mfr.Part #
- 09300160541
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN HOOD SIDE ENTRY SZ16B PG29
- Stock
- 11
- In Stock ：
- 11
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Housing Color :
- Gray
- RoHS Status :
- ROHS3 Compliant
- REACH SVHC :
- No SVHC
- IEC Conformance :
- No
- Body Material :
- Aluminium, Metal
- Packaging :
- Bulk
- MIL Conformance :
- No
- Lock Location :
- Locking Clip (1) on Base Bottom
- Package / Case :
- Metal
- Height :
- 75.9968mm
- Ratings :
- Dust Tight, IP65, Water Resistant
- Housing Material :
- Aluminum, Die Cast
- Operating Temperature :
- -40°C~125°C
- Size / Dimension :
- 3.681Lx1.693W x 2.992 H 93.50mmx43.00mmx76.00mm
- Number of Positions :
- 6
- Size :
- 16b
- Housing Finish :
- Powder Coated
- Thread Size :
- PG29
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Side Entry
- Pbfree Code :
- yes
- Connector Type :
- Hood
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Gender :
- FEMALE
- Connector Support Type :
- CONNECTOR ACCESSORY
- Factory Lead Time :
- 7 Weeks
- Series :
- Han® B
- DIN Conformance :
- No
- Datasheets
- 09300160541
7 Weeks CONNECTOR ACCESSORY Bulk Han® B Hood Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09300160541 Overview
Packaging for this item is Hood.To package the product, a Bulk case is used.The product is a member of the Han® B Series.There is a device enclosed in the packaging with the Metal.It operates at an operating temperature of -40°C~125°C.
09300160541 Features
Han® B series
09300160541 Applications
There are a lot of HARTING
09300160541 Heavy Duty Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
