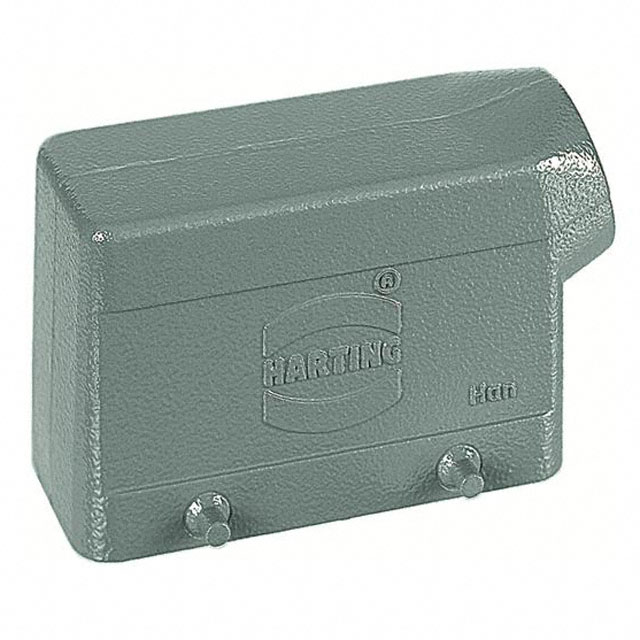

09300101521
Or copy the link below:
- Mfr.Part #
- 09300101521
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN HOOD SIDE ENTRY SZ10B PG16
- Stock
- 16
- In Stock ：
- 16
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Housing Color :
- Gray
- Lead Free :
- Lead Free
- REACH SVHC :
- No SVHC
- Size :
- 10b
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Housing Finish :
- Powder Coated
- Factory Lead Time :
- 7 Weeks
- Height :
- 56.9976mm
- Housing Material :
- Aluminum, Die Cast
- Gender :
- FEMALE
- Style :
- Side Entry
- Body Material :
- Aluminium, Metal
- Connector Type :
- Hood
- Number of Positions :
- 3
- RoHS Status :
- ROHS3 Compliant
- Size / Dimension :
- 2.858Lx1.693W x 2.244 H 72.60mmx43.00mmx57.00mm
- Package / Case :
- Metal
- Thread Size :
- PG16
- Material :
- Aluminium, Metal
- Packaging :
- Bulk
- Ratings :
- Dust Tight, IP65, Water Resistant
- Series :
- Han® B
- Termination :
- CABLE
- Pbfree Code :
- yes
- Operating Temperature :
- -40°C~125°C
- Connector Support Type :
- CONNECTOR ACCESSORY
- Lock Location :
- Locking Clip (2) on Base Bottom
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 09300101521
7 Weeks CONNECTOR ACCESSORY Bulk Han® B Hood Aluminum, Die Cast Side Entry Locking Clip (2) on Base Bottom -40°C~125°C Gray
09300101521 Overview
The product comes in a package of Hood.Packaging is performed using a Bulk case.It is part of the Han® B Series of products.A device is enclosed in the packaging with the Metal.There is no operating temperature for the device.
09300101521 Features
Han® B series
09300101521 Applications
There are a lot of HARTING
09300101521 Heavy Duty Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
