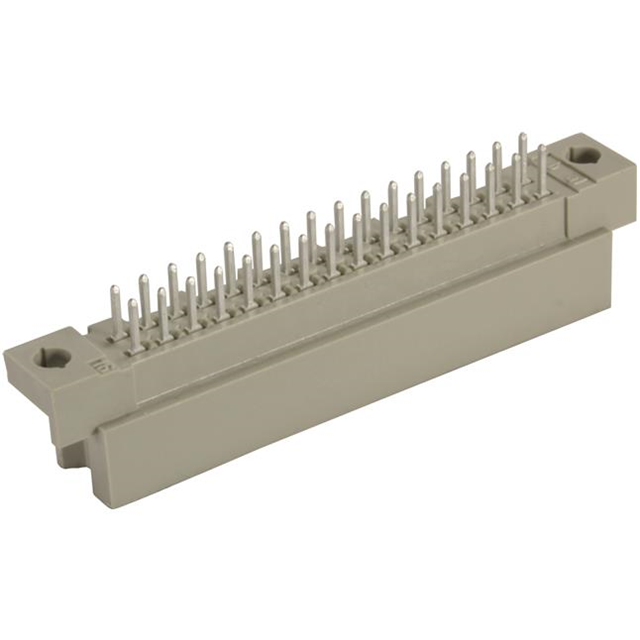

09271322903

Manufacturer :

HARTING

Product Category :

DIN 41612

Current Rating (Amps) :

2A

Termination :

Solder

Body Breadth :

0.338 inch

Mounting Type :

Through Hole

Operating Temperature :

-55°C~125°C

Name of Rows Loaded :

A,B

Number Of PCB Rows :

2

Pbfree Code :

yes

DIN Conformance :

yes

Series :

DIN 41612

Packaging :

Bulk

Number of Positions :

32

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Contact Material :

NOT SPECIFIED

Connector Type :

Header, Male Pins

MIL Conformance :

No

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Filter Feature :

No

Level, Class :

1

RoHS Status :

ROHS3 Compliant

Body Depth :

0.457 inch

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Reliability :

COMMERCIAL

Pitch :

0.100 2.54mm

Factory Lead Time :

7 Weeks

Reference Standard :

VDE,CSA

Contact Finish :

Gold-Palladium

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Number of Rows :

2

ECCN Code :

EAR99

PCB Contact Pattern :

RECTANGULAR

Contact Finish Thickness :

Flash

HTS Code :

8536.69.40.40

JESD-609 Code :

e4

Style :

2Q

Total Number of Contacts :

32

UL Flammability Code :

94V-0

Number of Positions Loaded :

All
