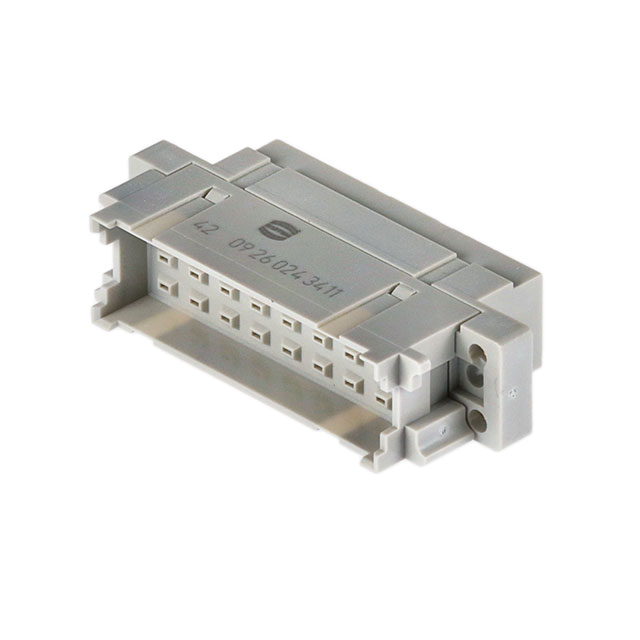

09260243411

Manufacturer :

HARTING

Product Category :

Backplane Connector Housings

Insulation Resistance :

1000000000000Ohm

Withdrawl Force-Min :

1.112 N

Option :

GENERAL PURPOSE

Number of Positions :

24

Total Number of Contacts :

24

RoHS Status :

ROHS3 Compliant

Contact Material :

NOT SPECIFIED

Mounting Type :

Free Hanging (In-Line)

Contact Finish - Mating :

NOT SPECIFIED

Durability :

500 Cycles

Number of Rows :

3

Cable Type :

WIRE, DISCRETE

Reference Standard :

VDE,CSA

Reliability :

COMMERCIAL

Mounting Option 2 :

NON-THREADED

Body Length or Diameter :

2.401 inch

Insulation Material :

GLASS FILLED THERMOPLASTIC

Mixed Contacts :

No

Packaging :

Bulk

DIN Conformance :

yes

Connector Type :

Plug, Male Pins

Filter Feature :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

ECCN Code :

EAR99

Body Depth :

1.142 inch

IEC Conformance :

No

Current Rating (Amps) :

6A

Insertion Force-Max :

1.5568 N

Shell Material :

GLASS FILLED POLYETHYLENE

Number of Positions Loaded :

All

Empty Shell :

yes

Termination :

Crimp

Style :

2F

Operating Temperature (Min) :

-65°C

MIL Conformance :

No

Operating Temperature (Max) :

125°C

Pitch :

0.150 3.81mm

Mating Contact Row Spacing :

0.169 inch

Mounting Option 1 :

HOLE .099-.111

Factory Lead Time :

4 Weeks

Contact Gender :

FEMALE

Series :

DIN 41612

Dielectric Withstanding Voltage :

1550VAC V

UL Flammability Code :

94V-0

Contact Design :

STRIP OR LOOSE
