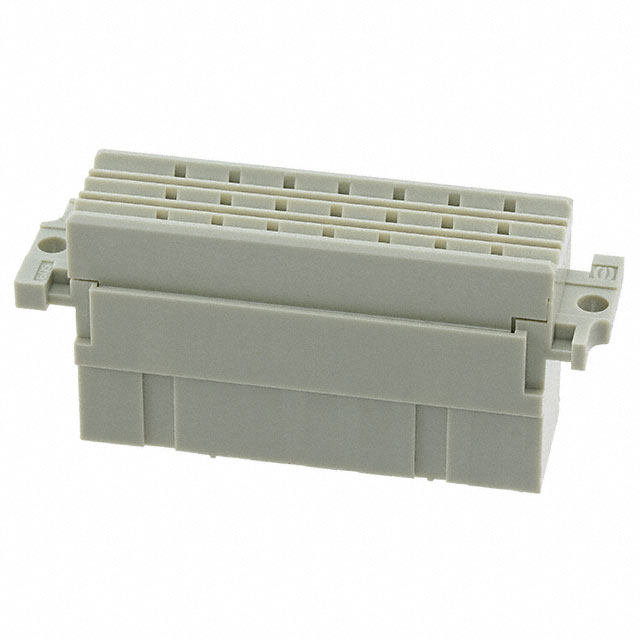

09260243201

Manufacturer :

HARTING

Product Category :

Backplane Connector Housings

Connector Style :

Power

Number of Positions :

24

Cable Type :

WIRE, DISCRETE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Empty Shell :

yes

Durability :

500 Cycles

Reference Standard :

VDE,CSA

Body Length or Diameter :

2.126 inch

UL Flammability Code :

94V-0

IEC Conformance :

No

Shell Material :

GLASS FILLED POLYETHYLENE

RoHS Status :

ROHS3 Compliant

MIL Conformance :

No

Additional Feature :

STANDARD: DIN 41612

Insulation Resistance :

1000000000000Ohm

Body Depth :

0.996 inch

ECCN Code :

EAR99

Filter Feature :

No

Operating Temperature (Max) :

125°C

Total Number of Contacts :

24

Dielectric Withstanding Voltage :

1550VAC V

Pitch :

0.150 3.81mm

Mixed Contacts :

No

Packaging :

Bulk

Mating Contact Row Spacing :

0.15 inch

Number of Rows :

3

Termination Type :

Crimp

Note :

Contacts Not Included

Mount :

Free Hanging

Insertion Force-Max :

1.5568 N

Option :

GENERAL PURPOSE

Withdrawl Force-Min :

1.112 N

Operating Temperature (Min) :

-65°C

Reliability :

COMMERCIAL

Factory Lead Time :

5 Weeks

Mounting Type :

Free Hanging (In-Line)

DIN Conformance :

yes

Insulation Material :

GLASS FILLED THERMOPLASTIC

Contact Design :

STRIP OR LOOSE

Body/Shell Style :

PLUG

Contact Finish - Mating :

NOT SPECIFIED

Connector Type :

Housing for Female Sockets
