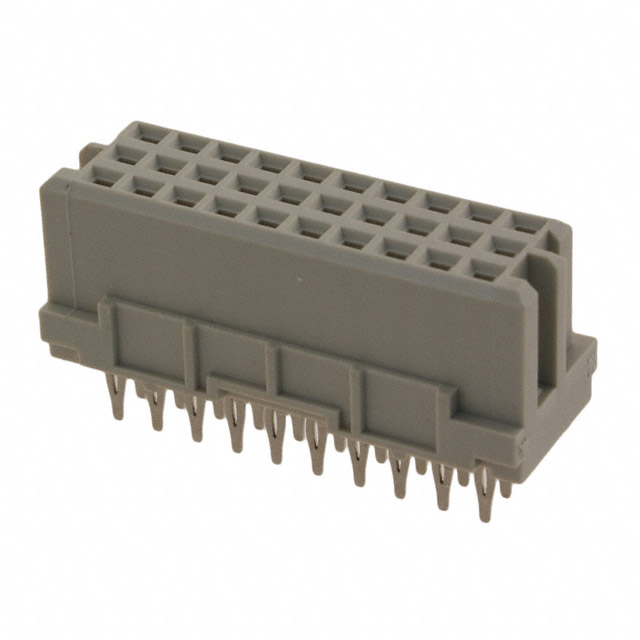

09252306870
Or copy the link below:
- Mfr.Part #
- 09252306870
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN DIN RCPT 30POS PCB
- Stock
- 18
- In Stock ：
- 18
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- DIN 41612
- Housing Material :
- Thermoplastic
- Factory Lead Time :
- 9 Weeks
- Insulation Resistance :
- 1000000000000Ohm
- Body Length or Diameter :
- 1.148 inch
- Contact Pattern :
- RECTANGULAR
- Flammability Rating :
- UL94 V-0
- Reliability :
- COMMERCIAL
- Material - Insulation :
- Thermoplastic, Glass Filled
- Reference Standard :
- UL
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- Material Flammability Rating :
- UL94 V-0
- Option :
- GENERAL PURPOSE
- Durability :
- 400 Cycles
- Contact Finish - Mating :
- NOT SPECIFIED
- Current Rating :
- 2A
- Mount :
- Through Hole
- Rated Current (Signal) :
- 2A
- Insulator Color :
- Gray
- Level, Class :
- 2
- Style :
- 3C
- Series :
- DIN 41612
- Number of Conductors :
- ONE
- Orientation :
- Straight
- Number of Positions :
- 30
- Number of Positions Loaded :
- All
- Number of Rows :
- 3
- Total Number of Contacts :
- 30
- MIL Conformance :
- No
- Body Depth :
- 0.457 inch
- PCB Contact Pattern :
- RECTANGULAR
- IEC Conformance :
- No
- Polarization Key :
- POLARIZED HOUSING
- Length - Termination :
- 0.177 inch
- Mating Contact Row Spacing :
- 0.1 inch
- DIN Conformance :
- yes
- Number Of PCB Rows :
- 3
- Connector Type :
- Receptacle, Female Sockets
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Filter Feature :
- No
- Pitch :
- 0.100 2.54mm
- Mixed Contacts :
- No
- Packaging :
- Bulk
- Lead Free :
- Lead Free
- Termination :
- Press-Fit
- Operating Temperature :
- -40°C~105°C
- Mounting Type :
- Through Hole
- Datasheets
- 09252306870
09252306870 datasheet pdf and Backplane Connectors - DIN 41612 product details from HARTING stock available at Xinshop
