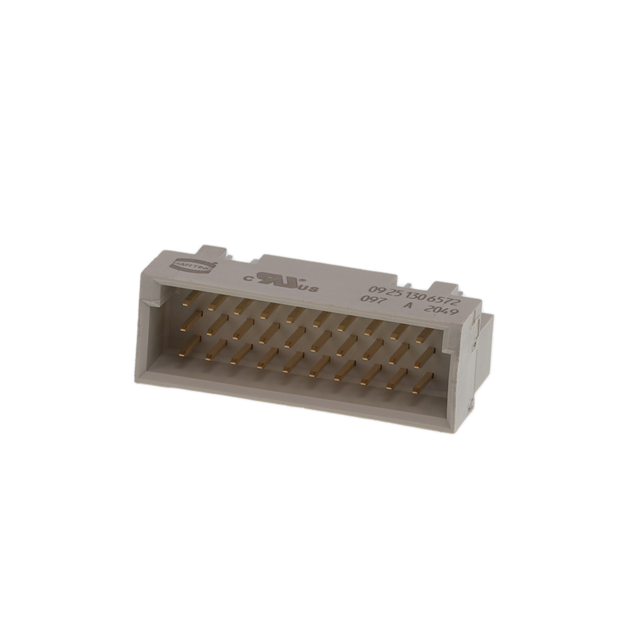

09251306572
Or copy the link below:
- Mfr.Part #
- 09251306572
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN DIN HDR 30POS PCB GOLD
- Stock
- 30,851
- In Stock ：
- 30,851
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- DIN 41612
- Gender :
- Male
- RoHS Status :
- ROHS3 Compliant
- Lead Free :
- Lead Free
- Mount :
- Through Hole
- Name of Rows Loaded :
- A,B,C
- Mating Contact Row Spacing :
- 0.1 inch
- Length - Tail :
- 3mm
- Number of Rows :
- 3
- Filter Feature :
- No
- Option :
- GENERAL PURPOSE
- Contact Finish Thickness :
- Flash
- Insulation Resistance :
- 1000000000000Ohm
- Housing Material :
- Thermoplastic
- Pitch :
- 0.100 2.54mm
- Current Rating :
- 2A
- Material Flammability Rating :
- UL94 V-0
- PCB Contact Pattern :
- RECTANGULAR
- Connector Type :
- Header, Male Pins
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e4
- MIL Conformance :
- No
- Mixed Contacts :
- No
- Style :
- 3C
- Contact Plating :
- Gold, Nickel
- Reliability :
- COMMERCIAL
- Termination :
- Solder
- Number Of PCB Rows :
- 3
- IEC Conformance :
- No
- Durability :
- 400 Cycles
- Level, Class :
- 2
- Number of Positions Loaded :
- All
- Series :
- DIN 41612
- Rated Current (Signal) :
- 2A
- Reference Standard :
- UL
- Orientation :
- Straight
- Factory Lead Time :
- 7 Weeks
- Material - Insulation :
- Thermoplastic, Glass Filled
- Contact Finish :
- Gold
- Packaging :
- Bulk
- Contact Material :
- Gold, Nickel
- Total Number of Contacts :
- 30
- Polarization Key :
- POLARIZED HOUSING
- Operating Temperature (Min) :
- -55°C
- ECCN Code :
- EAR99
- DIN Conformance :
- yes
- Insulator Color :
- Gray
- Number of Positions :
- 30
- Flammability Rating :
- UL94 V-0
- Mounting Type :
- Through Hole
- Datasheets
- 09251306572
09251306572 Documents
09251306572 datasheet pdf and Backplane Connectors - DIN 41612 product details from HARTING stock available at Xinshop
