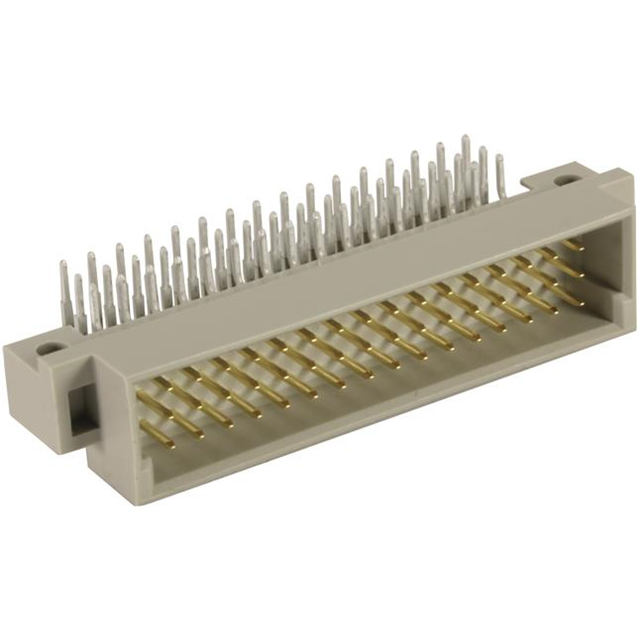

09231487951

Manufacturer :

HARTING

Product Category :

DIN 41612

ECCN Code :

EAR99

UL Flammability Code :

94V-0

MIL Conformance :

No

Factory Lead Time :

7 Weeks

Number Of PCB Rows :

3

Packaging :

Bulk

Length - Termination :

0.118 inch

Durability :

50 Cycles

Number of Rows :

3

Reliability :

COMMERCIAL

Body Length or Diameter :

2.126 inch

Withdrawl Force-Min :

.9452 N

Filter Feature :

No

Insulation Resistance :

1000000000000Ohm

Termination :

Solder

Series :

DIN 41612

DIN Conformance :

yes

Contact Material :

NOT SPECIFIED

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Total Number of Contacts :

48

Name of Rows Loaded :

A,B,C

Operating Temperature :

-55°C~125°C

Mating Contact Row Spacing :

0.1 inch

Contact Finish :

Gold-Palladium

Polarization Key :

POLARIZED HOUSING

PCB Contact Row Spacing :

2.54 mm

RoHS Status :

ROHS3 Compliant

Option :

GENERAL PURPOSE

Number of Positions Loaded :

All

Number of Positions :

48

Reference Standard :

UL, CSA

Current Rating (Amps) :

2A

Dielectric Withstanding Voltage :

1000VAC V

Mounting Type :

Through Hole, Right Angle

Material Flammability Rating :

UL94 V-0

Insertion Force-Max :

.9452 N

IEC Conformance :

No

Contact Finish Thickness :

Flash

Connector Type :

Header, Male Pins

PCB Contact Pattern :

RECTANGULAR

Pitch :

0.100 2.54mm

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Pbfree Code :

yes

Mixed Contacts :

No

Contact Resistance :

15mOhm

Style :

2C

Body Depth :

0.709 inch
