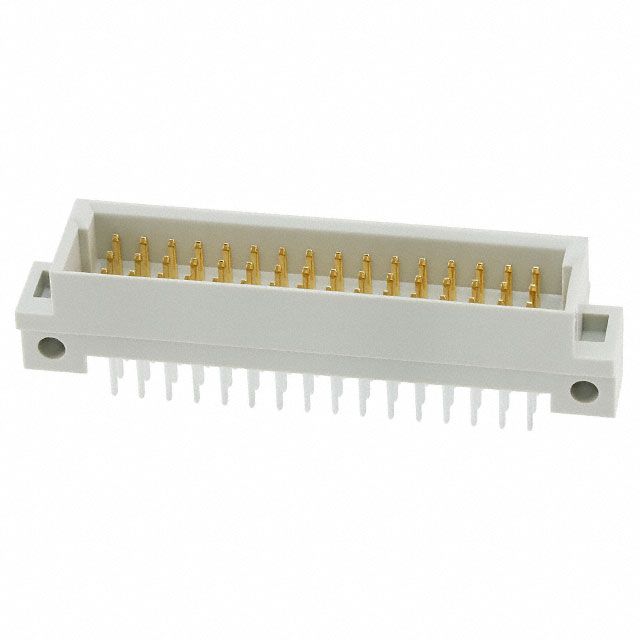

09231487922

Manufacturer :

HARTING

Product Category :

DIN 41612

MIL Conformance :

No

Packaging :

Bulk

Style :

2C

Mixed Contacts :

No

Depth :

11mm

Number of Positions :

48

Dielectric Withstanding Voltage :

1000VAC V

Length :

54mm

Total Number of Contacts :

48

Durability :

50 Cycles

Withdrawl Force-Min :

.9452 N

Reliability :

COMMERCIAL

Termination :

Solder

Current Rating :

2A

Number of Rows :

3

DIN Conformance :

yes

REACH SVHC :

No SVHC

Connector Type :

Header, Male Pins

Mounting Type :

Through Hole

Name of Rows Loaded :

A,B,C

Filter Feature :

No

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Material Flammability Rating :

UL94 V-0

Contact Finish :

Gold or Gold-Palladium

PCB Contact Pattern :

RECTANGULAR

Flammability Rating :

UL94 V-0

Series :

DIN 41612

Max Current Rating :

2A

Reference Standard :

UL, CSA

Orientation :

Straight

Contact Material :

Gold, Nickel

Contact Finish Thickness :

Flash

Pbfree Code :

yes

Insulation Resistance :

1000000000000Ohm

Contact Plating :

Gold

Test Voltage :

1kV

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Resistance :

15mOhm

IEC Conformance :

No

Number of Positions Loaded :

All

Mount :

Through Hole

ECCN Code :

EAR99

RoHS Status :

ROHS3 Compliant

Factory Lead Time :

7 Weeks

Rated Current (Signal) :

2A

UL Flammability Code :

94V-0

Mating Contact Row Spacing :

0.1 inch

Pitch :

0.100 2.54mm

Operating Temperature :

-55°C~125°C

Number Of PCB Rows :

3

Insertion Force-Max :

.9452 N
