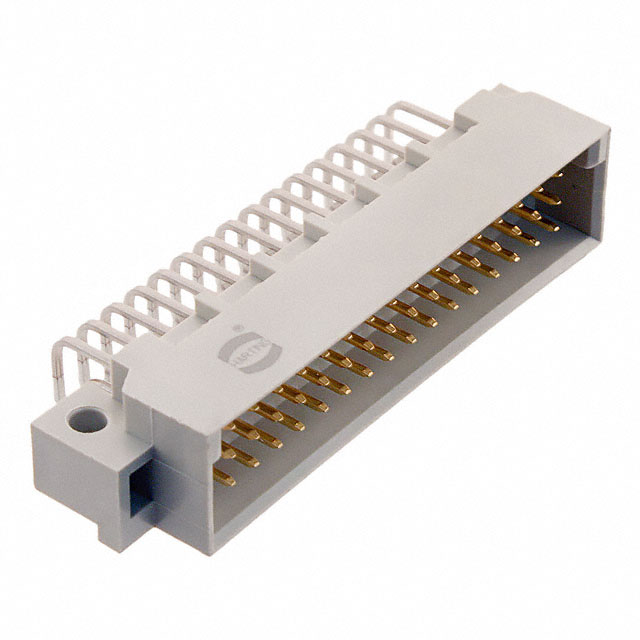

09231486951

Manufacturer :

HARTING

Product Category :

DIN 41612

Body Depth :

0.709 inch

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Current Rating :

2A

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Height :

11mm

Filter Feature :

No

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Number Of PCB Rows :

3

Number of Positions :

48

Factory Lead Time :

7 Weeks

IEC Conformance :

No

Mating Contact Row Spacing :

0.1 inch

Voltage - Rated :

175V

Style :

2C

Contact Material :

Gold, Nickel

Rated Current (Signal) :

2A

Contact Finish :

Gold or Gold-Palladium

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Contact Finish Thickness :

Flash

Option :

GENERAL PURPOSE

MIL Conformance :

No

Durability :

400 Cycles

RoHS Status :

ROHS3 Compliant

UL Flammability Code :

94V-0

Mounting Type :

Through Hole, Right Angle

Operating Temperature :

-55°C~125°C

Length - Termination :

0.118 inch

Insulation Resistance :

1000000000000Ohm

Total Number of Contacts :

48

Reliability :

COMMERCIAL

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Pitch :

0.100 2.54mm

Number of Rows :

3

Series :

DIN 41612

Contact Resistance :

15mOhm

DIN Conformance :

yes

Connector Type :

Header, Male Pins

Contact Plating :

Gold

PCB Contact Pattern :

RECTANGULAR

Packaging :

Bulk

Name of Rows Loaded :

A,B,C

Level, Class :

2

ECCN Code :

EAR99

Mount :

Through Hole

Reference Standard :

UL, CSA

Dielectric Withstanding Voltage :

1000VAC V

Pbfree Code :

yes
