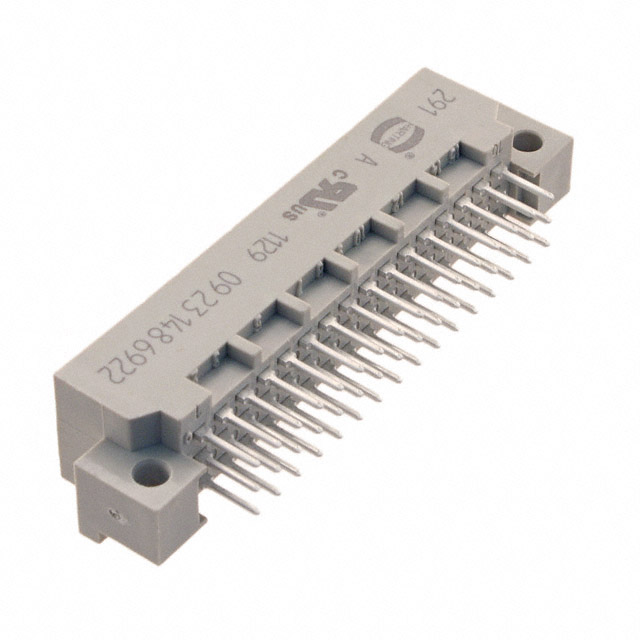

09231486922

Manufacturer :

HARTING

Product Category :

DIN 41612

Current Rating :

2A

Max Operating Temperature :

125°C

Max Current Rating :

2A

Mounting Type :

Through Hole

Dielectric Withstanding Voltage :

1000VAC V

Number of Rows :

3

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Length :

54mm

Pitch :

0.100 2.54mm

Polarization Key :

POLARIZED HOUSING

Number of Positions :

48

Contact Finish Thickness :

Flash

Factory Lead Time :

7 Weeks

Material - Insulation :

Thermoplastic, Glass Filled

Mating Contact Row Spacing :

0.1 inch

Style :

2C

Mixed Contacts :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Durability :

400 Cycles

Number of Positions Loaded :

All

Insulation Resistance :

1000000000000Ohm

UL Flammability Code :

94V-0

Housing Material :

Thermoplastic

Reference Standard :

UL, CSA

Gender :

Male

Series :

DIN 41612

MIL Conformance :

No

Total Number of Contacts :

48

Termination :

Solder

Contact Resistance :

20mOhm

Level, Class :

2

Material Flammability Rating :

UL94 V-0

Number Of PCB Rows :

3

Rated Current (Signal) :

2A

Contact Material :

NOT SPECIFIED

IEC Conformance :

No

Packaging :

Bulk

Reliability :

COMMERCIAL

RoHS Status :

ROHS3 Compliant

Min Operating Temperature :

-55°C

DIN Conformance :

yes

Connector Type :

Header, Male Pins

Option :

GENERAL PURPOSE

Name of Rows Loaded :

A,B,C

Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Mount :

Through Hole

Contact Finish :

Gold

Orientation :

Straight

ECCN Code :

EAR99

Depth :

11mm
