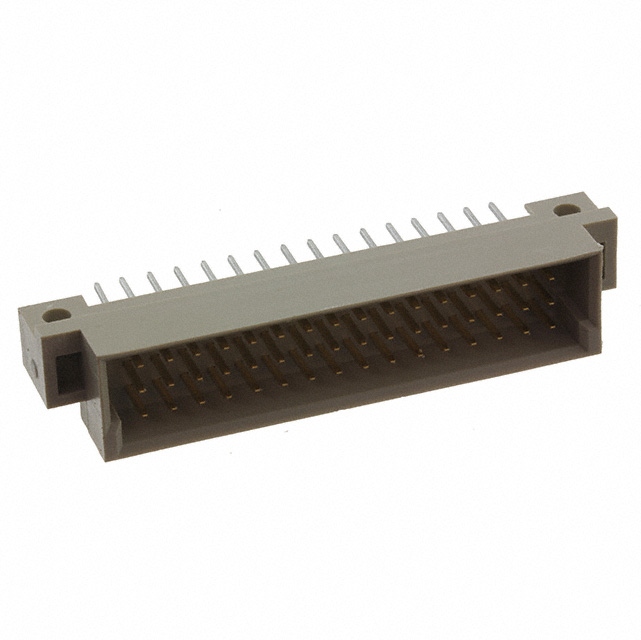

09231482922

Manufacturer :

HARTING

Product Category :

DIN 41612

Factory Lead Time :

7 Weeks

Depth :

11mm

Durability :

500 Cycles

Polarization Key :

POLARIZED HOUSING

Number of Positions Loaded :

All

Length :

54mm

Pbfree Code :

yes

Connector Type :

Header, Male Pins

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

2C

Contact Material :

NOT SPECIFIED

Mounting Type :

Through Hole

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold-Palladium

Contact Plating :

Gold

Withdrawl Force-Min :

.9452 N

Contact Finish Thickness :

Flash

Mixed Contacts :

No

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Rated Current (Signal) :

2A

IEC Conformance :

No

PCB Contact Pattern :

RECTANGULAR

ECCN Code :

EAR99

Orientation :

Straight

Series :

DIN 41612

Operating Temperature :

-55°C~125°C

Packaging :

Bulk

Total Number of Contacts :

48

Insertion Force-Max :

.9452 N

Level, Class :

1

Reference Standard :

UL, CSA

DIN Conformance :

yes

Reliability :

COMMERCIAL

Option :

GENERAL PURPOSE

Number Of PCB Rows :

3

Termination :

Solder

Number of Rows :

3

Number of Positions :

48

Max Current Rating :

2A

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Pitch :

0.100 2.54mm

Name of Rows Loaded :

A,B,C

Gender :

Male

UL Flammability Code :

94V-0
