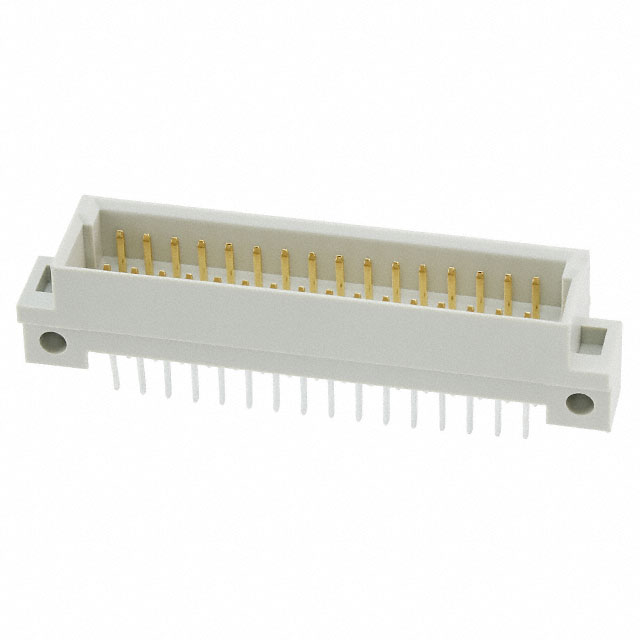

09231326922

Manufacturer :

HARTING

Product Category :

DIN 41612

UL Flammability Code :

94V-0

Max Current Rating :

2A

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Connector Type :

Header, Male Pins

Contact Resistance :

15mOhm

Contact Finish Thickness :

Flash

Reference Standard :

UL, CSA

Style :

2C

Number of Positions :

48

Option :

GENERAL PURPOSE

Level, Class :

2

Durability :

400 Cycles

Depth :

11mm

PCB Contact Pattern :

RECTANGULAR

Mixed Contacts :

No

Flammability Rating :

UL94 V-0

Insulation Resistance :

1000000000000Ohm

Number of Rows :

3

Total Number of Contacts :

32

Mount :

Through Hole

Current Rating :

2A

DIN Conformance :

yes

Rated Current (Signal) :

2A

Pbfree Code :

yes

Name of Rows Loaded :

A,C

Dielectric Withstanding Voltage :

1000VAC V

Contact Plating :

Gold

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Tail :

3mm

Housing Material :

Thermoplastic

Contact Finish :

Gold or Gold-Palladium

Factory Lead Time :

7 Weeks

Contact Material :

NOT SPECIFIED

Mounting Type :

Through Hole

RoHS Status :

ROHS3 Compliant

Length :

54mm

Series :

DIN 41612

IEC Conformance :

No

Material Flammability Rating :

UL94 V-0

Pitch :

0.100 2.54mm

Reliability :

COMMERCIAL

Mating Contact Row Spacing :

0.1 inch

Filter Feature :

No

Number of Positions Loaded :

32

Polarization Key :

POLARIZED HOUSING

MIL Conformance :

No

Orientation :

Straight

Termination :

Solder

Packaging :

Bulk

Number Of PCB Rows :

3

Operating Temperature :

-55°C~125°C
