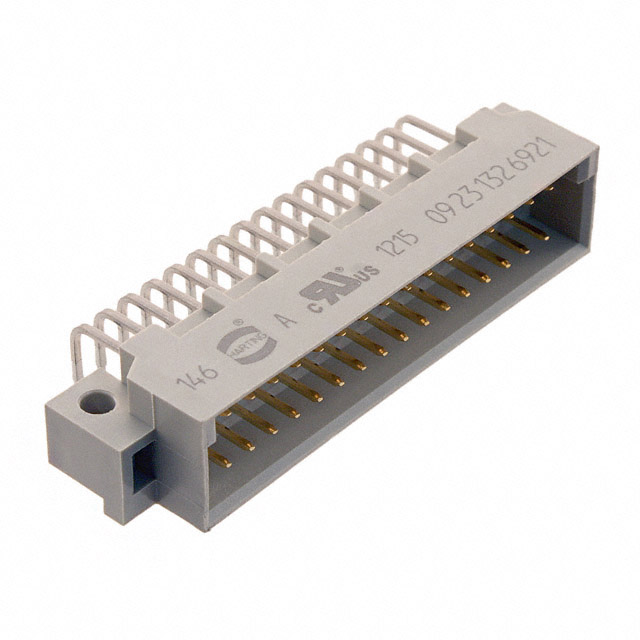

09231326921

Manufacturer :

HARTING

Product Category :

DIN 41612

Number of Rows :

3

MIL Conformance :

No

Lead Free :

Lead Free

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Gender :

Male

Number Of PCB Rows :

3

Number of Positions Loaded :

32

Max Operating Temperature :

125°C

Housing Material :

PBT

Durability :

400 Cycles

Working Voltage :

250V

Pbfree Code :

yes

Lead Length :

2.96mm

Style :

2C

Name of Rows Loaded :

A,C

Termination :

Solder

Level, Class :

2

ECCN Code :

EAR99

Pitch :

0.100 2.54mm

Packaging :

Bulk

Insulation Resistance :

1000000000000Ohm

Test Voltage :

1kV

Factory Lead Time :

4 Weeks

Lead Pitch :

2.54mm

Mounting Type :

Through Hole, Right Angle

Reliability :

COMMERCIAL

IEC Conformance :

No

Material :

Glass, Polyester

Reference Standard :

UL, CSA

Material Flammability Rating :

UL94 V-0

DIN Conformance :

yes

Material - Insulation :

Thermoplastic, Glass Filled

Max Current Rating :

2A

Depth :

17.72mm

Contact Material :

Copper

Option :

GENERAL PURPOSE

Hole Diameter :

1 mm

Contact Finish :

Gold

Contact Resistance :

15mOhm

Total Number of Contacts :

32

Series :

DIN 41612

Filter Feature :

No

Min Operating Temperature :

-55°C

Current Rating :

2A

Voltage - Rated DC :

250V

Rated Current (Signal) :

2A

REACH SVHC :

No SVHC

Dielectric Withstanding Voltage :

1000VAC V

Mixed Contacts :

No

RoHS Status :

ROHS3 Compliant

Number of Positions :

48

Connector Type :

Header, Male Pins

PCB Contact Pattern :

RECTANGULAR

Mating Contact Row Spacing :

0.1 inch

Flammability Rating :

UL94 V-0

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

Orientation :

RIGHT ANGLE

Mount :

Through Hole

Length :

54mm

Contact Finish Thickness :

Flash
