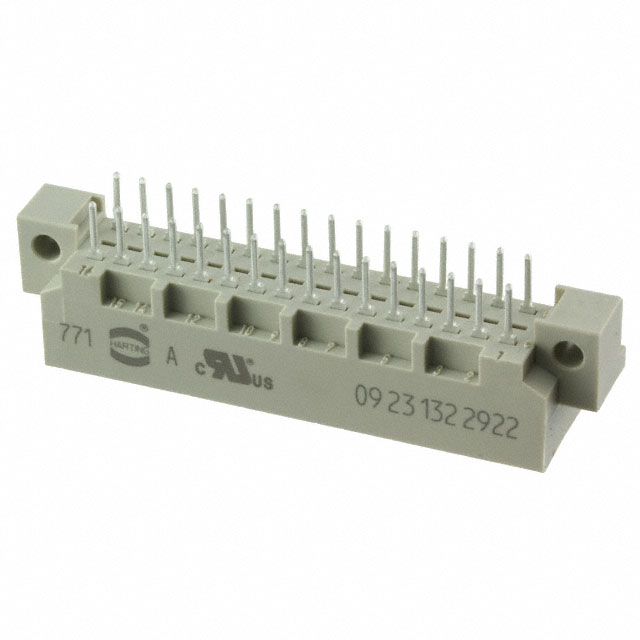

09231322922

Manufacturer :

HARTING

Product Category :

DIN 41612

Level, Class :

1

Termination :

Solder

UL Flammability Code :

94V-0

Number of Positions :

48

Option :

GENERAL PURPOSE

Material Flammability Rating :

UL94 V-0

PCB Contact Row Spacing :

2.54 mm

Number Of PCB Rows :

3

IEC Conformance :

No

Style :

2C

Total Number of Contacts :

32

Name of Rows Loaded :

A,C

Pbfree Code :

yes

Factory Lead Time :

7 Weeks

MIL Conformance :

No

Filter Feature :

No

Contact Material :

NOT SPECIFIED

Series :

DIN 41612

Number of Rows :

3

Current Rating :

2A

Reference Standard :

UL, CSA

Durability :

500 Cycles

PCB Contact Pattern :

RECTANGULAR

Contact Plating :

Gold

Mixed Contacts :

No

Insertion Force-Max :

.9452 N

ECCN Code :

EAR99

Flammability Rating :

UL94 V-0

Packaging :

Bulk

Reliability :

COMMERCIAL

DIN Conformance :

yes

Contact Finish :

Gold or Gold-Palladium

Polarization Key :

POLARIZED HOUSING

Number of Positions Loaded :

32

Pitch :

0.100 2.54mm

Connector Type :

Header, Male Pins

Rated Current (Signal) :

2A

Contact Finish Thickness :

Flash

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Mounting Type :

Through Hole

Withdrawl Force-Min :

.9452 N

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-55°C~125°C

RoHS Status :

ROHS3 Compliant

Mount :

Through Hole
