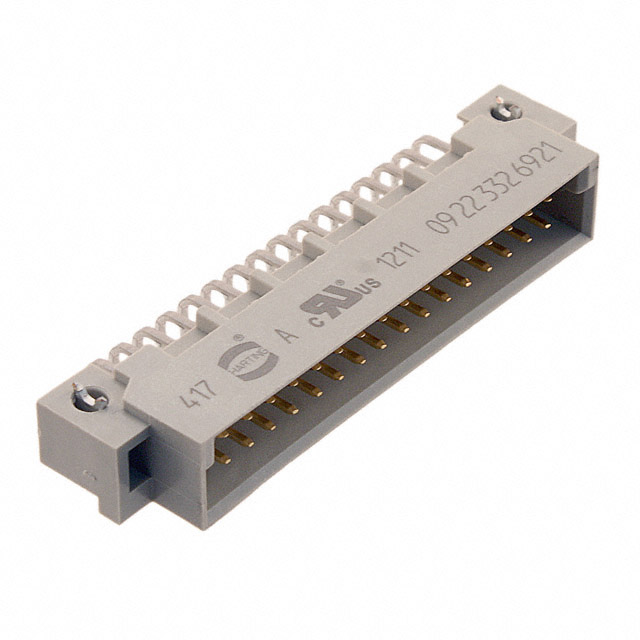

09223326921

Manufacturer :

HARTING

Product Category :

DIN 41612

Contact Finish :

Gold

Lead Free :

Lead Free

Current Rating :

2A

Packaging :

Bulk

Termination :

Solder

Contact Material :

NOT SPECIFIED

DIN Conformance :

yes

Flammability Rating :

UL94 V-0

Gender :

Male

Mounting Type :

Through Hole, Right Angle

Number of Rows :

2

Series :

DIN 41612

Mount :

Through Hole

Connector Type :

Header, Male Pins

Length :

54mm

Contact Plating :

Gold, Nickel

Contact Finish Thickness :

Flash

Option :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pitch :

0.100 2.54mm

UL Flammability Code :

94V-0

Style :

2B

Length - Tail :

3mm

Factory Lead Time :

4 Weeks

Number of Positions Loaded :

All

Mixed Contacts :

No

IEC Conformance :

No

Filter Feature :

No

Orientation :

RIGHT ANGLE

Max Current Rating :

2A

Depth :

15.18mm

Pbfree Code :

yes

ECCN Code :

EAR99

Material - Insulation :

Thermoplastic, Glass Filled

JESD-609 Code :

e4

HTS Code :

8536.69.40.40

Total Number of Contacts :

32

Number of Positions :

32

RoHS Status :

ROHS3 Compliant

Feature :

Mounting Clips

Material Flammability Rating :

UL94 V-0

MIL Conformance :

No
