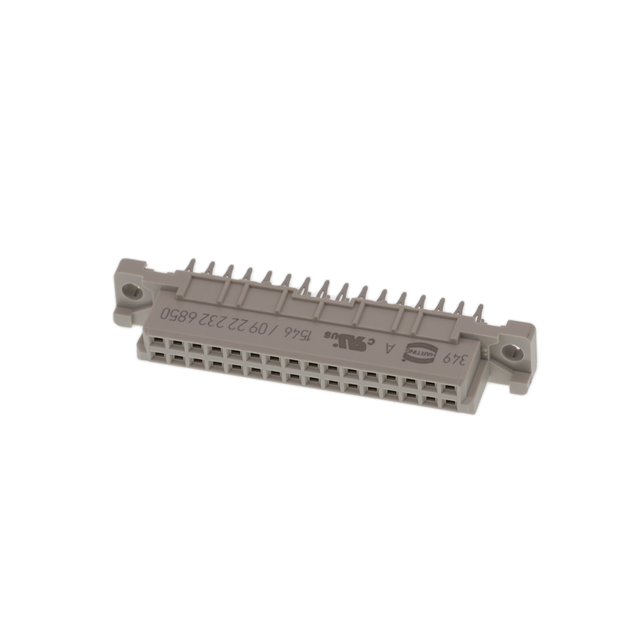

09222326850

Manufacturer :

HARTING

Product Category :

DIN 41612

Termination :

Press-Fit

Housing Material :

Thermoplastic

Total Number of Contacts :

32

Material Flammability Rating :

UL94 V-0

Material - Insulation :

Thermoplastic, Glass Filled

IEC Conformance :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length - Tail :

4.5mm

DIN Conformance :

yes

UL Flammability Code :

94V-0

Length :

54.9mm

Number of Positions Loaded :

All

Connector Type :

Receptacle, Female Sockets

Orientation :

Straight

Mount :

Through Hole

Mixed Contacts :

No

JESD-609 Code :

e4

Option :

GENERAL PURPOSE

Current Rating :

2A

Number of Rows :

2

Contact Plating :

Gold

Flammability Rating :

UL94 V-0

Series :

DIN 41612

Pitch :

0.100 2.54mm

MIL Conformance :

No

Lead Free :

Lead Free

Contact Material :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Packaging :

Bulk

Max Current Rating :

2A

Factory Lead Time :

9 Weeks

Contact Resistance :

15mOhm

Pbfree Code :

yes

Filter Feature :

No

Style :

2B

Operating Temperature :

-40°C~105°C

Gender :

FEMALE

Mounting Type :

Through Hole

Depth :

8mm

Number of Positions :

32
