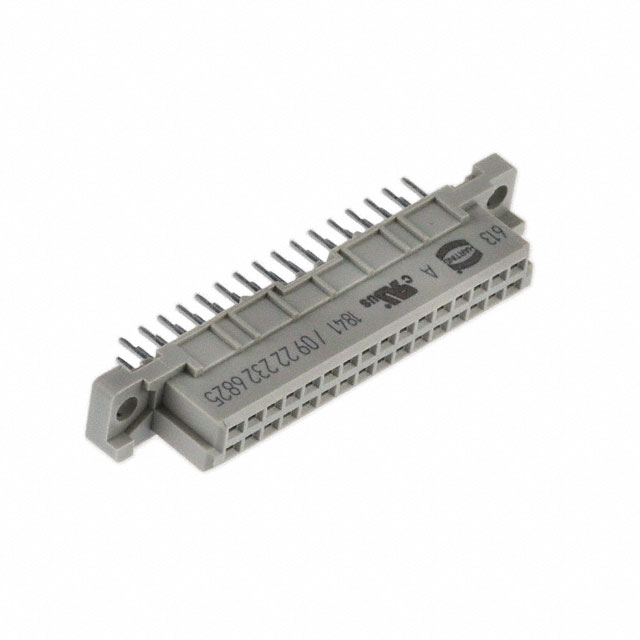

09222326825

Manufacturer :

HARTING

Product Category :

DIN 41612

PCB Contact Pattern :

RECTANGULAR

Material :

Glass, Polyester

RoHS Status :

ROHS3 Compliant

Insertion Force-Max :

.9174 N

Pbfree Code :

yes

MIL Conformance :

No

Withdrawl Force-Min :

.9174 N

JESD-609 Code :

e3

REACH SVHC :

No SVHC

Length - Tail :

4.5mm

Termination :

Solder

Lead Free :

Lead Free

Lead Length :

4mm

Material Flammability Rating :

UL94 V-0

Mating Contact Row Spacing :

0.1 inch

Max Current Rating :

2A

Hole Diameter :

1 mm

Pitch :

0.100 2.54mm

Name of Rows Loaded :

A,B

Gender :

Receptacle

Mixed Contacts :

No

Number of Rows :

2

Factory Lead Time :

9 Weeks

Working Voltage :

250V

IEC Conformance :

No

Durability :

400 Cycles

Body Breadth :

0.315 inch

Mount :

Through Hole

Packaging :

Bulk

Series :

DIN 41612

Number Of PCB Rows :

2

Reliability :

COMMERCIAL

Min Operating Temperature :

-65°C

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Lead Pitch :

2.54mm

Contact Plating :

Gold

Depth :

8mm

Option :

GENERAL PURPOSE

Orientation :

Straight

Insulation Resistance :

1000000000000Ohm

Number of Positions Loaded :

All

Max Operating Temperature :

125°C

Rated Current (Signal) :

2A

Material - Insulation :

Thermoplastic, Glass Filled

Mounting Type :

Through Hole

Housing Material :

Thermoplastic

DIN Conformance :

yes

Style :

2B

Polarization Key :

POLARIZED HOUSING

UL Flammability Code :

94V-0

Flammability Rating :

UL94 V-0

Number of Positions :

32

Filter Feature :

No

Total Number of Contacts :

32

Contact Material :

Copper

Length :

54.9mm

Voltage - Rated DC :

250V

Current Rating :

2A

Connector Type :

Receptacle, Female Sockets
