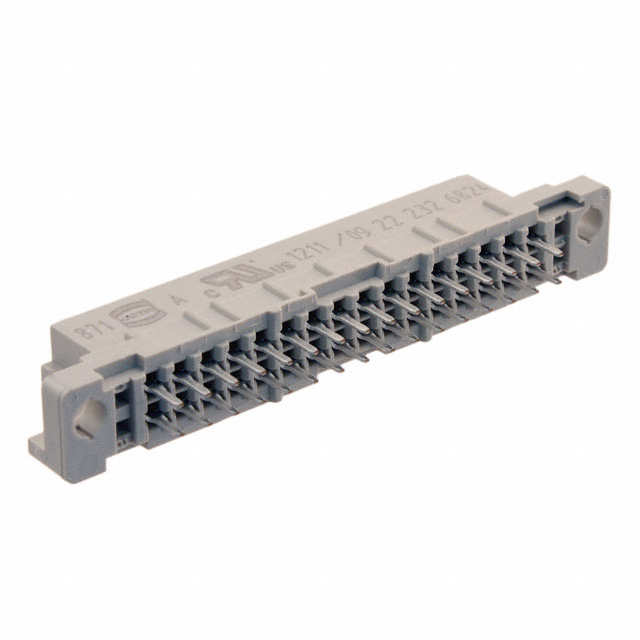

09222326824

Manufacturer :

HARTING

Product Category :

DIN 41612

Contact Resistance :

20mOhm

Material Flammability Rating :

UL94 V-0

REACH SVHC :

No SVHC

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Orientation :

Straight

Factory Lead Time :

9 Weeks

Lead Free :

Lead Free

Contact Material :

Gold, Nickel

Series :

DIN 41612

Min Operating Temperature :

-55°C

DIN Conformance :

yes

Depth :

8mm

RoHS Status :

ROHS3 Compliant

Flammability Rating :

UL94 V-0

Number of Positions :

32

Gender :

Receptacle

Housing Material :

Thermoplastic

Packaging :

Bulk

Connector Type :

Receptacle, Female Sockets

Material - Insulation :

Thermoplastic, Glass Filled

Style :

2B

UL Flammability Code :

94V-0

Contact Plating :

Gold

Option :

GENERAL PURPOSE

Length :

54.9mm

Current Rating :

2A

Filter Feature :

No

Max Current Rating :

2A

Number of Rows :

2

JESD-609 Code :

e4

Mounting Type :

Through Hole

Total Number of Contacts :

32

Pbfree Code :

yes

Pitch :

0.100 2.54mm

Length - Tail :

2.9mm

MIL Conformance :

No

Test Voltage :

1kV

Mixed Contacts :

No

Mount :

Through Hole

Max Operating Temperature :

125°C

IEC Conformance :

No

Termination :

Solder

Number of Positions Loaded :

All
