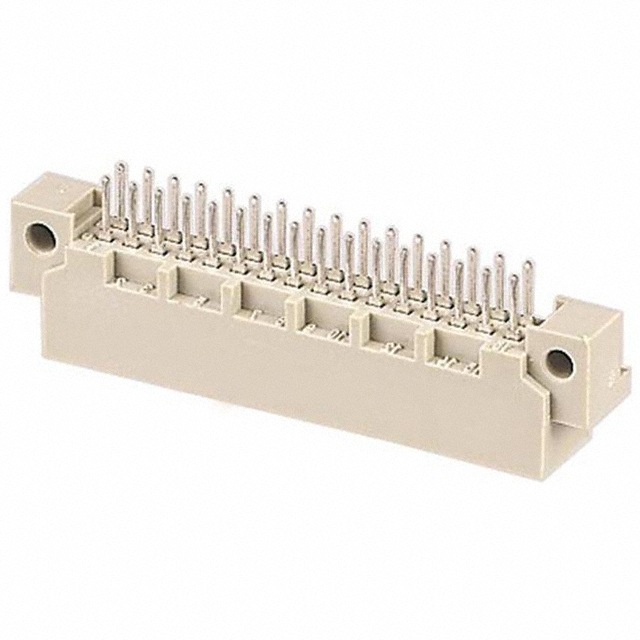

09221326922

Manufacturer :

HARTING

Product Category :

DIN 41612

Option :

GENERAL PURPOSE

Contact Material :

Gold, Nickel

Gender :

Male

Reliability :

COMMERCIAL

Termination :

Solder

Length :

54mm

Number of Rows :

2

Style :

2B

HTS Code :

8536.69.40.40

Reference Standard :

UL, CSA

Filter Feature :

No

Housing Material :

Thermoplastic

Contact Finish :

Gold

JESD-609 Code :

e4

Insulation Resistance :

1000000000000Ohm

ECCN Code :

EAR99

Pitch :

0.100 2.54mm

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Max Current Rating :

2A

Depth :

8.5mm

Name of Rows Loaded :

A,B

Current Rating :

2A

Flammability Rating :

UL94 V-0

DIN Conformance :

yes

UL Flammability Code :

94V-0

Min Operating Temperature :

-55°C

Body Breadth :

0.339 inch

Total Number of Contacts :

32

Test Voltage :

1kV

Number of Positions Loaded :

All

REACH SVHC :

No SVHC

Material - Insulation :

Thermoplastic, Glass Filled

Mixed Contacts :

No

Connector Type :

Header, Male Pins

Orientation :

Straight

IEC Conformance :

No

Series :

DIN 41612

Contact Finish Thickness :

Flash

Contact Resistance :

20mOhm

MIL Conformance :

No

Material Flammability Rating :

UL94 V-0

Pbfree Code :

yes

Mating Contact Row Spacing :

0.1 inch

Mounting Type :

Through Hole

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

RoHS Status :

ROHS3 Compliant

Max Operating Temperature :

125°C

Rated Current (Signal) :

2A

Number of Positions :

32

Factory Lead Time :

7 Weeks

PCB Contact Pattern :

RECTANGULAR

Number Of PCB Rows :

2

Dielectric Withstanding Voltage :

1000VAC V

Mount :

Through Hole
