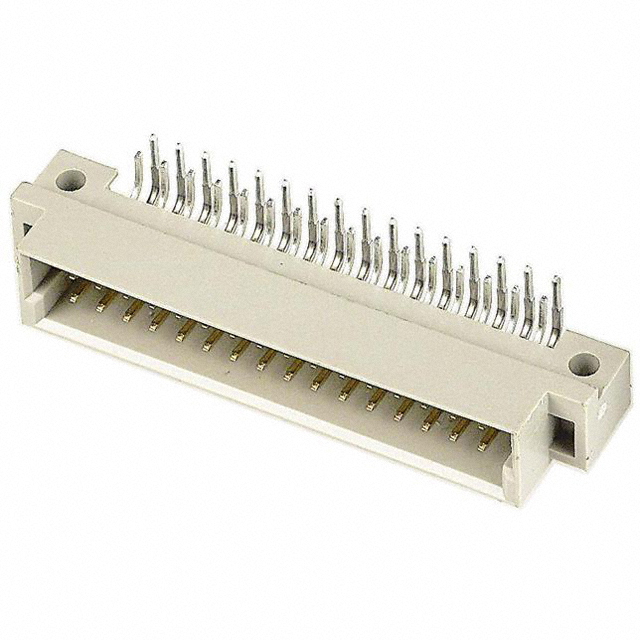

09221326921

Manufacturer :

HARTING

Product Category :

DIN 41612

Number Of PCB Rows :

2

Length :

54mm

RoHS Status :

ROHS3 Compliant

Contact Finish :

Gold

HTS Code :

8536.69.40.40

Mount :

Through Hole

Mounting Type :

Through Hole, Right Angle

Termination :

Solder

Material Flammability Rating :

UL94 V-0

Durability :

400 Cycles

Min Operating Temperature :

-65°C

Contact Material :

Copper

Lead Length :

3mm

Max Current Rating :

2A

Orientation :

RIGHT ANGLE

Pitch :

0.100 2.54mm

Dielectric Withstanding Voltage :

1000VAC V

Hole Diameter :

1 mm

Number of Rows :

2

Contact Finish Thickness :

Flash

DIN Conformance :

yes

Number of Positions :

32

IEC Conformance :

No

REACH SVHC :

No SVHC

Factory Lead Time :

4 Weeks

Style :

2B

Current Rating :

2A

Number of Positions Loaded :

All

Reliability :

COMMERCIAL

MIL Conformance :

No

Housing Material :

Thermoplastic

Insulation Resistance :

1000000000000Ohm

Test Voltage :

1kV

Lead Free :

Lead Free

Working Voltage :

250V

Mixed Contacts :

No

Contact Resistance :

15mOhm

Reference Standard :

UL, CSA

Pbfree Code :

yes

Connector Type :

Header, Male Pins

Filter Feature :

No

Max Operating Temperature :

125°C

Packaging :

Bulk

Flammability Rating :

UL94 V-0

Depth :

15.18mm

PCB Contact Pattern :

RECTANGULAR

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

Rated Current (Signal) :

2A

Lead Pitch :

2.54mm

Gender :

Male

Voltage - Rated DC :

250V

Name of Rows Loaded :

A,B

Mating Contact Row Spacing :

0.1 inch

Option :

GENERAL PURPOSE

Material :

Glass, Polyester

Body Breadth :

0.339 inch

Material - Insulation :

Thermoplastic, Glass Filled

Length - Tail :

3mm

Total Number of Contacts :

32

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Series :

DIN 41612

JESD-609 Code :

e3

ECCN Code :

EAR99
