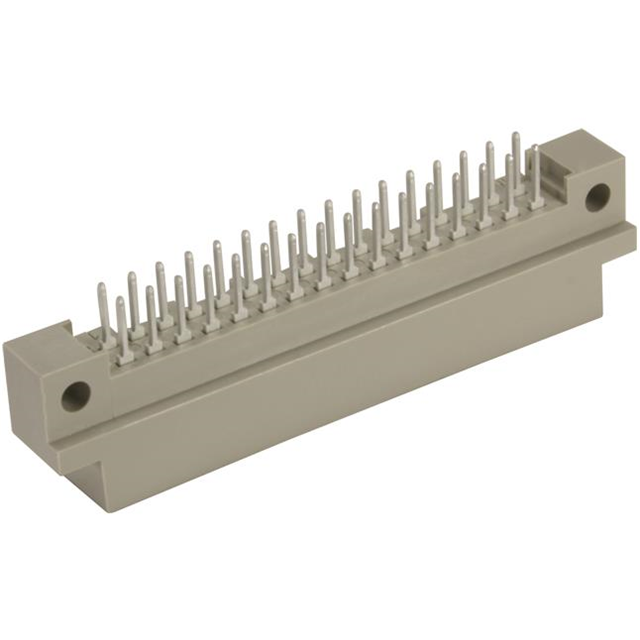

09221322922

Manufacturer :

HARTING

Product Category :

DIN 41612

Option :

GENERAL PURPOSE

Number of Positions Loaded :

All

Series :

DIN 41612

Number Of PCB Rows :

2

PCB Contact Pattern :

RECTANGULAR

Material - Insulation :

Polybutylene Terephthalate (PBT), Glass Filled

Reference Standard :

UL, CSA

Termination :

Solder

Style :

2B

Connector Type :

Header, Male Pins

Operating Temperature :

-55°C~125°C

Filter Feature :

No

Mounting Type :

Through Hole

Body Breadth :

0.339 inch

Contact Material :

NOT SPECIFIED

UL Flammability Code :

94V-0

Material Flammability Rating :

UL94 V-0

Insertion Force-Max :

.9452 N

Reliability :

COMMERCIAL

Contact Finish :

Gold-Palladium

HTS Code :

8536.69.40.40

JESD-609 Code :

e4

Name of Rows Loaded :

A,B

Current Rating (Amps) :

2A

Packaging :

Bulk

RoHS Status :

ROHS3 Compliant

Withdrawl Force-Min :

.9452 N

Number of Positions :

32

Total Number of Contacts :

32

DIN Conformance :

yes

Mixed Contacts :

No

Polarization Key :

POLARIZED HOUSING

Factory Lead Time :

7 Weeks

MIL Conformance :

No

Pbfree Code :

yes

ECCN Code :

EAR99

Number of Rows :

1

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

PCB Contact Row Spacing :

2.54 mm

Pitch :

0.100 2.54mm
