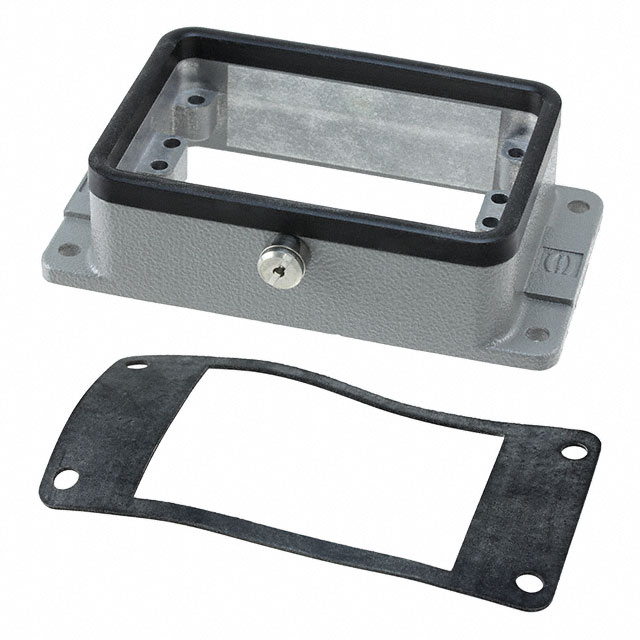

09200320381
Or copy the link below:
- Mfr.Part #
- 09200320381
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ32A
- Stock
- 35,402
- In Stock ：
- 35,402
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Series :
- Han® A
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Ratings :
- Dust Tight, IP65, Water Resistant
- Connector Type :
- Base - Panel Mount
- RoHS Status :
- ROHS3 Compliant
- Operating Temperature :
- -40°C~125°C
- Size / Dimension :
- 4.016Lx2.205W x 1.118 H 102.00mmx56.00mmx28.40mm
- Connector Support Type :
- CONNECTOR ACCESSORY
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Panel
- Factory Lead Time :
- 7 Weeks
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Housing Color :
- Gray
- Size :
- 32A
- Lock Location :
- Locking Clip (1) on Hood
- Housing Finish :
- Powder Coated
- Style :
- Bottom Entry
- Housing Material :
- Aluminum, Die Cast
- Height :
- 28.3972mm
- Datasheets
- 09200320381
7 Weeks CONNECTOR ACCESSORY Bulk Han® A Base - Panel Mount Aluminum, Die Cast Bottom Entry Locking Clip (1) on Hood -40°C~125°C Gray
09200320381 Overview
The packaging contains Base - Panel Mount.It has been determined that a Bulk case is necessary to package the product.There is a product in the Han® A Series.Part Panel is mounted to the part.As a result, the device runs at -40°C~125°C Operating Temperature.
09200320381 Features
Han® A series
09200320381 Applications
There are a lot of HARTING
09200320381 Heavy Duty Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
