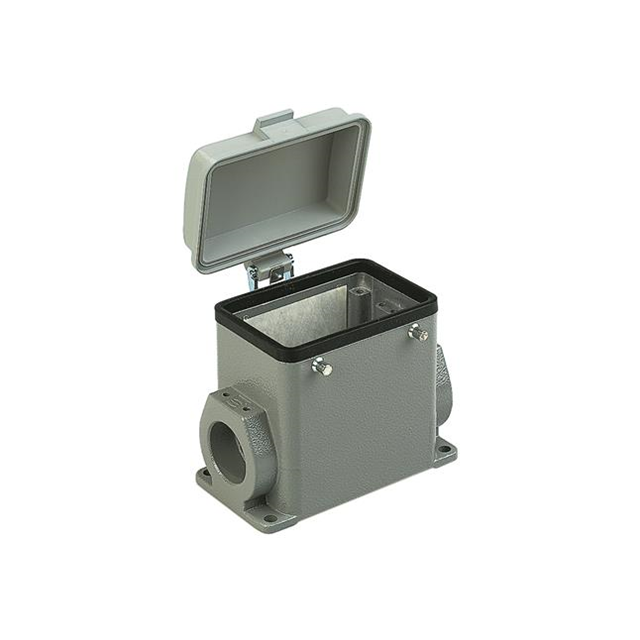

09200320260
Or copy the link below:
- Mfr.Part #
- 09200320260
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ32A PG21
- Stock
- 27,176
- In Stock ：
- 27,176
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Size :
- 32A
- Factory Lead Time :
- 7 Weeks
- Lock Location :
- Locking Clip (2) on Hood
- Housing Finish :
- Powder Coated
- Contact Material :
- NOT SPECIFIED
- Thread Size :
- PG21
- Connector Type :
- Base - Box Mount
- Housing Color :
- Gray
- Size / Dimension :
- 4.173Lx2.244W x 3.220 H 106.00mmx57.00mmx81.80mm
- Contact Finish - Mating :
- NOT SPECIFIED
- IEC Conformance :
- No
- DIN Conformance :
- No
- Operating Temperature :
- -40°C~125°C
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Option :
- GENERAL PURPOSE
- Packaging :
- Bulk
- Style :
- Side Entry
- Housing Material :
- Aluminum, Die Cast
- Feature :
- Cover, Feed Through
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Height :
- 81.788mm
- Ratings :
- Dust Tight, IP65, Water Resistant
- Mount :
- Base
- Series :
- Han® A
- Pbfree Code :
- yes
- Datasheets
- 09200320260
7 Weeks Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (2) on Hood -40°C~125°C Gray
09200320260 Overview
It comes in Base - Box Mount packaging.It is necessary to use a Bulk case for packaging the product.This product is part of the Han® A Series.In many ways, its Cover, Feed Through feature makes it more powerful.Base is used to mount the part.In this case, the device operates at -40°C~125°C Operating Temperature.
09200320260 Features
Han® A series
09200320260 Applications
There are a lot of HARTING
09200320260 Heavy Duty Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
