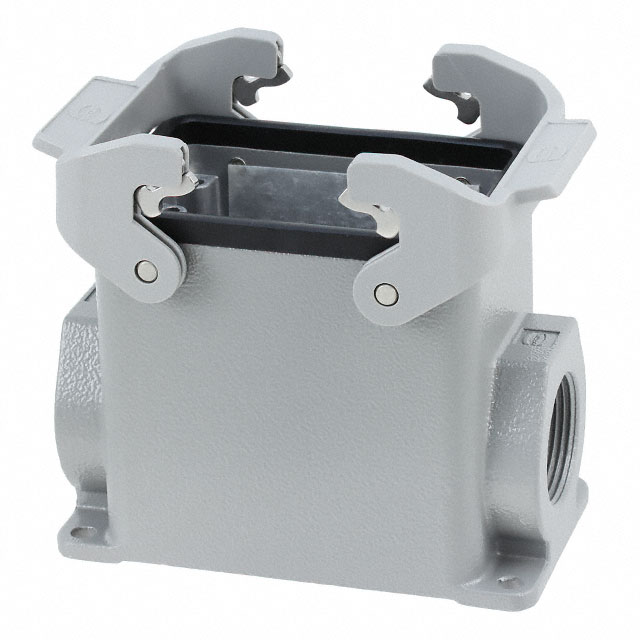

09200320230
Or copy the link below:
- Mfr.Part #
- 09200320230
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ32A PG21
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Size / Dimension :
- 4.173Lx2.244W x 3.220 H 106.00mmx57.00mmx81.80mm
- RoHS Status :
- ROHS3 Compliant
- Housing Color :
- Gray
- Mount :
- Surface Mount
- Lock Location :
- Locking Clip (2) on Base Bottom
- Ratings :
- Dust Tight, IP65, Water Resistant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Finish :
- Powder Coated
- Series :
- Han® A
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Style :
- Side Entry
- Connector Type :
- Base - Box Mount
- Size :
- 32A
- Housing Material :
- Aluminum, Die Cast
- Connector Support Type :
- CONNECTOR ACCESSORY
- Operating Temperature :
- -40°C~125°C
- Thread Size :
- PG21
- Factory Lead Time :
- 4 Weeks
- Height :
- 81.788mm
- Packaging :
- Bulk
- Datasheets
- 09200320230
4 Weeks CONNECTOR ACCESSORY Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (2) on Base Bottom -40°C~125°C Gray
09200320230 Overview
The product is packaged in Base - Box Mount.Packaging for the product is carried out via a Bulk case.As a product of the Han® A Series, it can be found in this category.In this case, Surface Mount mounts the part.The device is operating at -40°C~125°C Operating Temperature.
09200320230 Features
Han® A series
09200320230 Applications
There are a lot of HARTING
09200320230 Heavy Duty Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
