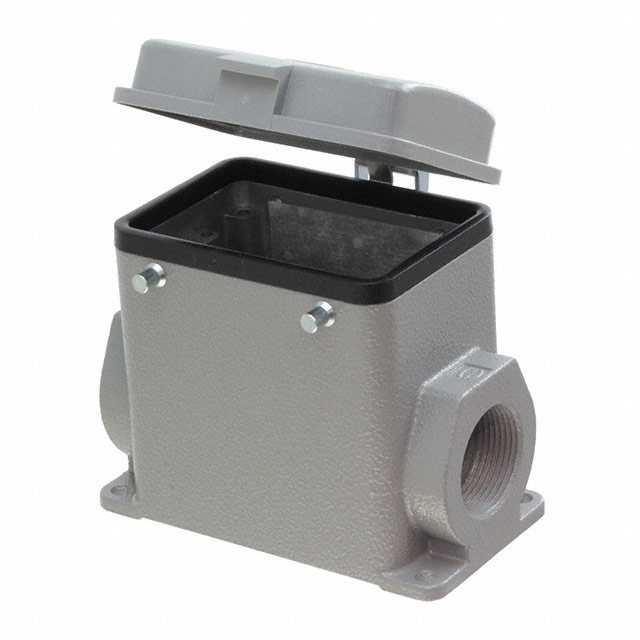

09200320220
Or copy the link below:
- Mfr.Part #
- 09200320220
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ32A PG21
- Stock
- 39,593
- In Stock ：
- 39,593
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Ratings :
- Dust Tight, IP65, Water Resistant
- Contact Material :
- NOT SPECIFIED
- RoHS Status :
- ROHS3 Compliant
- Thread Size :
- PG21
- Contact Finish - Mating :
- NOT SPECIFIED
- MIL Conformance :
- No
- Mount :
- Surface Mount
- Feature :
- Cover
- Series :
- Han® A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Style :
- Side Entry
- Operating Temperature :
- -40°C~125°C
- Connector Type :
- Base - Box Mount
- Pbfree Code :
- yes
- Size / Dimension :
- 4.173Lx2.244W x 3.220 H 106.00mmx57.00mmx81.80mm
- Option :
- GENERAL PURPOSE
- Housing Material :
- Aluminum, Die Cast
- Size :
- 32A
- Housing Finish :
- Powder Coated
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Packaging :
- Bulk
- IEC Conformance :
- No
- Housing Color :
- Gray
- Height :
- 81.788mm
- Factory Lead Time :
- 7 Weeks
- DIN Conformance :
- No
- Lock Location :
- Locking Clip (2) on Hood
- Datasheets
- 09200320220
09200320220 Documents
7 Weeks Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (2) on Hood -40°C~125°C Gray
09200320220 Overview
This product is packaged in a Base - Box Mount box.This product is packaged in a case marked Bulk.Product number Han® A belongs to the Han® A Series.In many ways, it is more powerful due to its Cover feature.There is a Surface Mount mount on the part.This device operates at a temperature of -40°C~125°C.
09200320220 Features
Han® A series
09200320220 Applications
There are a lot of HARTING
09200320220 Heavy Duty Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
