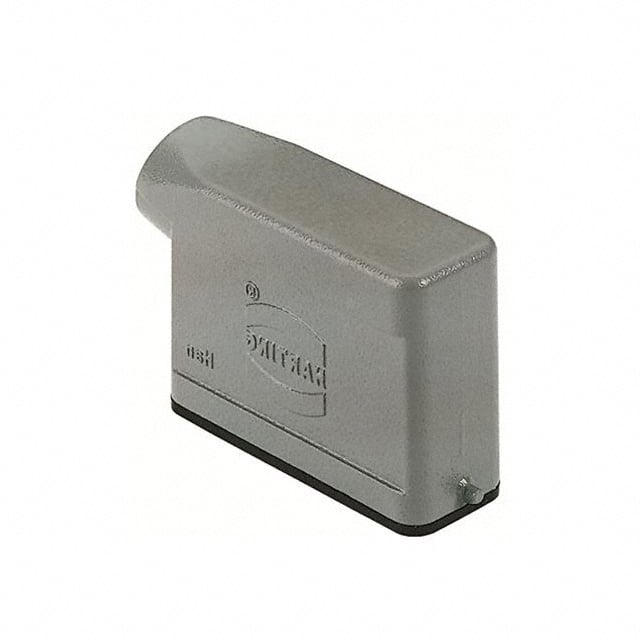

09200161541
Or copy the link below:
- Mfr.Part #
- 09200161541
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN HOOD SIDE ENTRY SZ16A PG16
- Stock
- 9
- In Stock ：
- 9
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Thread Size :
- PG16
- Number of Positions :
- 25
- Body Material :
- Aluminium, Metal
- Connector Type :
- Hood
- Series :
- Han® A
- Connector Support Type :
- CONNECTOR ACCESSORY
- Ratings :
- Dust Tight, IP65, Water Resistant
- Current Rating :
- 16A
- REACH SVHC :
- No SVHC
- Style :
- Side Entry
- Termination :
- CABLE
- Packaging :
- Bulk
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Contact Gender :
- FEMALE
- Lock Location :
- Locking Clip (1) on Base Bottom
- RoHS Status :
- ROHS3 Compliant
- Housing Material :
- Aluminum, Die Cast
- Depth :
- 64.5mm
- Height :
- 61.4934mm
- Factory Lead Time :
- 4 Weeks
- Housing Color :
- Gray
- Color :
- Grey
- Housing Finish :
- Powder Coated
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Size / Dimension :
- 3.130Lx1.161W x 2.421 H 79.50mmx29.50mmx61.50mm
- Operating Temperature :
- -40°C~125°C
- Package / Case :
- Metal
- Datasheets
- 09200161541
4 Weeks CONNECTOR ACCESSORY Bulk Han® A Hood Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200161541 Overview
This product is packaged in a Hood box.This product is packaged in a case marked Bulk.Product number Han® A belongs to the Han® A Series.Packaging with Metal contains a device.This device operates at a temperature of -40°C~125°C.
09200161541 Features
Han® A series
09200161541 Applications
There are a lot of HARTING
09200161541 Heavy Duty Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
