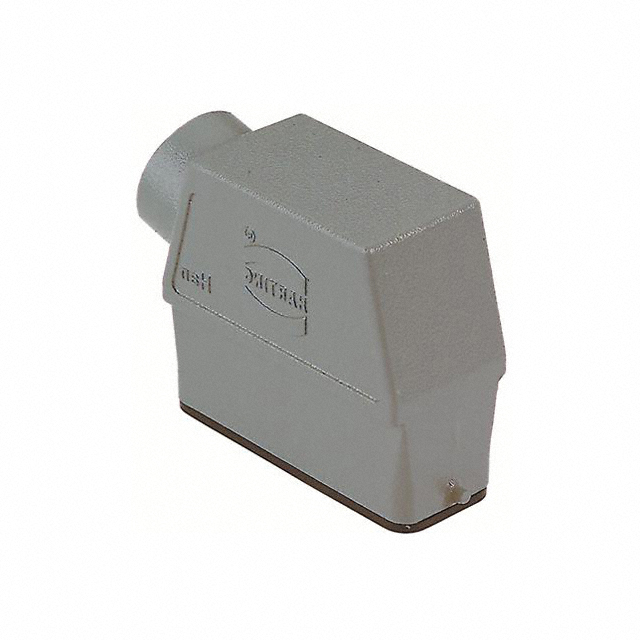

09200160541
Or copy the link below:
- Mfr.Part #
- 09200160541
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN HOOD SIDE ENTRY SZ16A PG21
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- MIL Conformance :
- No
- Connector Type :
- Hood
- RoHS Status :
- ROHS3 Compliant
- Body Material :
- Aluminium, Metal
- Number of Positions :
- 20
- IEC Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Housing Material :
- Aluminum, Die Cast
- Housing Color :
- Gray
- Series :
- Han® A
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Connector Support Type :
- CONNECTOR ACCESSORY
- Operating Temperature :
- -40°C~125°C
- Ratings :
- Dust Tight, IP65, Water Resistant
- REACH SVHC :
- No SVHC
- Contact Gender :
- FEMALE
- Factory Lead Time :
- 4 Weeks
- Package / Case :
- Metal
- Termination :
- CABLE
- Packaging :
- Bulk
- Depth :
- 36mm
- DIN Conformance :
- No
- Orientation :
- RIGHT ANGLE
- Pbfree Code :
- yes
- Style :
- Side Entry
- Housing Finish :
- Powder Coated
- Thread Size :
- PG21
- Lock Location :
- Locking Clip (1) on Base Bottom
- Height :
- 70.2056mm
- Current Rating :
- 16A
- Size / Dimension :
- 3.118Lx1.417W x 2.764 H 79.20mmx36.00mmx70.20mm
- Datasheets
- 09200160541
4 Weeks CONNECTOR ACCESSORY Bulk Han® A Hood Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200160541 Overview
The product comes in a package of Hood.Packaging is performed using a Bulk case.It is part of the Han® A Series of products.A device is enclosed in the packaging with the Metal.There is no operating temperature for the device.
09200160541 Features
Han® A series
09200160541 Applications
There are a lot of HARTING
09200160541 Heavy Duty Connectors applications.
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
