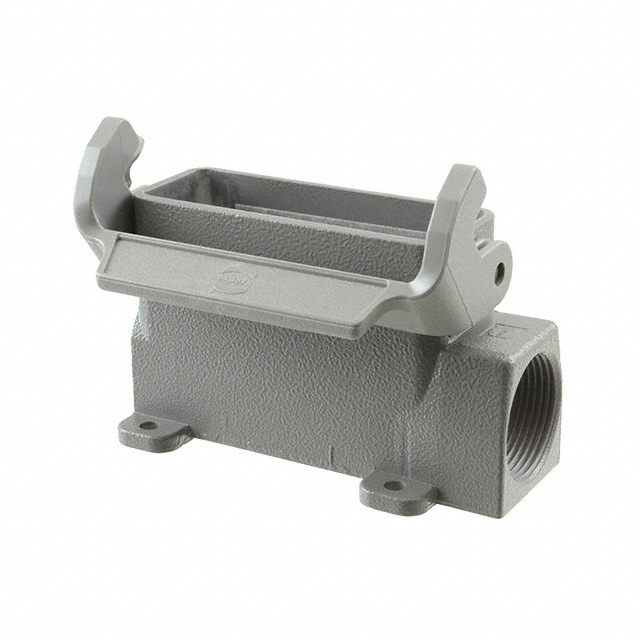

09200160252
Or copy the link below:
- Mfr.Part #
- 09200160252
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ16A PG21
- Stock
- 3
- In Stock ：
- 3
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Housing Color :
- Gray
- Connector Support Type :
- CONNECTOR ACCESSORY
- REACH SVHC :
- No SVHC
- Material :
- Zinc
- Housing Finish :
- Powder Coated
- Thread Size :
- PG21
- Size / Dimension :
- 3.740Lx1.969W x 2.244 H 95.00mmx50.00mmx57.00mm
- Operating Temperature :
- -40°C~125°C
- Factory Lead Time :
- 4 Weeks
- Size :
- 16A
- DIN Conformance :
- No
- Orientation :
- Straight
- RoHS Status :
- ROHS3 Compliant
- Connector Type :
- Base - Box Mount
- Housing Material :
- Aluminum, Die Cast
- Series :
- Han® A
- Assembly Item Name :
- HOUSING ITEM
- Style :
- Side Entry
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Ratings :
- Dust Tight, IP65, Water Resistant
- IEC Conformance :
- No
- MIL Conformance :
- No
- Mount :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Color :
- Grey
- Body Material :
- Metal
- Lock Location :
- Locking Clip (1) on Base Bottom
- Height :
- 56.9976mm
- Datasheets
- 09200160252
4 Weeks CONNECTOR ACCESSORY Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200160252 Overview
This product is packaged in a Base - Box Mount box.This product is packaged in a case marked Bulk.Product number Han® A belongs to the Han® A Series.There is a Surface Mount mount on the part.This device operates at a temperature of -40°C~125°C.
09200160252 Features
Han® A series
09200160252 Applications
There are a lot of HARTING
09200160252 Heavy Duty Connectors applications.
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
