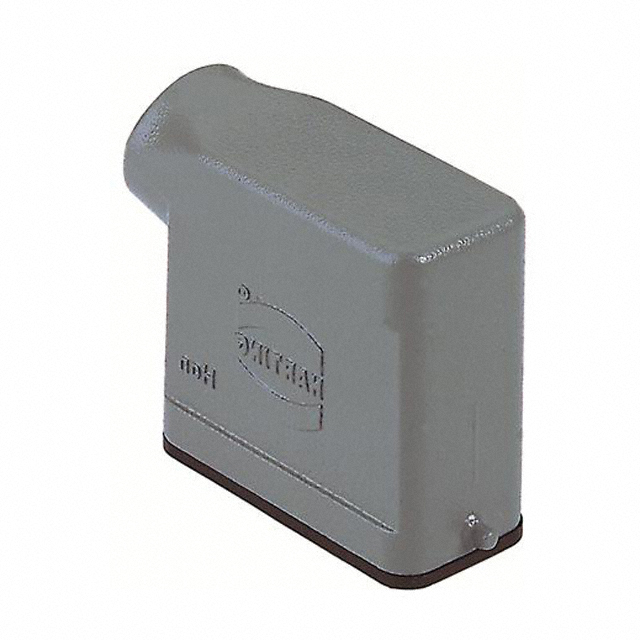

09200101541
Or copy the link below:
- Mfr.Part #
- 09200101541
- Manufacturer
- HARTING
- Package / Case
- Metal
- Datasheet
- Download
- Description
- CONN HOOD SIDE ENTRY SZ10A PG16
- Stock
- 44,855
- In Stock ：
- 44,855
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Current Rating :
- 10A
- Ratings :
- Dust Tight, IP65, Water Resistant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~125°C
- Lock Location :
- Locking Clip (1) on Base Bottom
- Housing Finish :
- Powder Coated
- Connector Support Type :
- CONNECTOR ACCESSORY
- Series :
- Han® A
- Thread Size :
- PG16
- Color :
- Silver
- Height :
- 54mm
- REACH SVHC :
- No SVHC
- RoHS Status :
- ROHS3 Compliant
- Gender :
- FEMALE
- Style :
- Side Entry
- Housing Material :
- Aluminum, Die Cast
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Factory Lead Time :
- 4 Weeks
- Packaging :
- Bulk
- Housing Color :
- Gray
- Package / Case :
- Metal
- Connector Type :
- Hood
- Body Material :
- Aluminium, Metal
- Number of Positions :
- 1
- Termination :
- CABLE
- Size / Dimension :
- 2.469Lx1.161W x 2.409 H 62.70mmx29.50mmx61.20mm
- Lead Free :
- Lead Free
- Datasheets
- 09200101541
09200101541 Documents
4 Weeks CONNECTOR ACCESSORY Bulk Han® A Hood Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200101541 Overview
The connector type Hood refers to the connector type.In order to package the product, a Bulk case is used.It belongs to the Han® A Series of products.In the packaging with the Metal, there is a device enclosed in the package.The device runs in -40°C~125°C Operating Temperature.
09200101541 Features
Han® A series
09200101541 Applications
There are a lot of HARTING
09200101541 Heavy Duty Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
