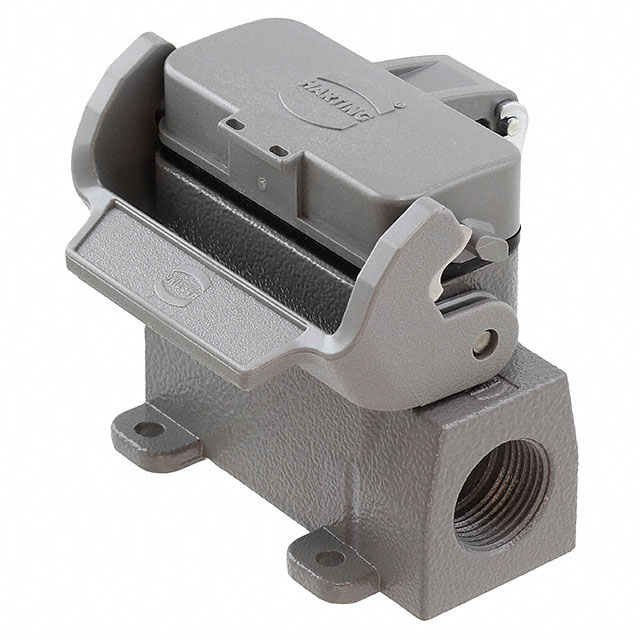

09200100296
Or copy the link below:
- Mfr.Part #
- 09200100296
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ10A PG16
- Stock
- 12
- In Stock ：
- 12
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- RoHS Status :
- ROHS3 Compliant
- Option :
- GENERAL PURPOSE
- Feature :
- Cover, Feed Through
- MIL Conformance :
- No
- Style :
- Side Entry
- Housing Material :
- Aluminum, Die Cast
- Ratings :
- Dust Tight, IP65, Water Resistant
- Pbfree Code :
- yes
- Packaging :
- Bulk
- Thread Size :
- PG16
- Series :
- Han® A
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Contact Material :
- NOT SPECIFIED
- Size / Dimension :
- 3.461Lx1.969W x 2.047 H 87.90mmx50.00mmx52.00mm
- Connector Type :
- Base - Box Mount
- IEC Conformance :
- No
- Factory Lead Time :
- 7 Weeks
- Housing Color :
- Gray
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- Contact Finish - Mating :
- NOT SPECIFIED
- DIN Conformance :
- No
- Operating Temperature :
- -40°C~125°C
- Size :
- 10A
- Height :
- 51.9938mm
- Mount :
- Base
- Housing Finish :
- Powder Coated
- Lock Location :
- Locking Clip (1) on Base Bottom
- Datasheets
- 09200100296
7 Weeks Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200100296 Overview
The packaging is Base - Box Mount.Packaged in a Bulk case.A member of the Han® A Series.This feature renders it more powerful in a number of ways because of its Cover, Feed Through feature.There's a Base mount on the part.Device runs in -40°C~125°C operating temperature.
09200100296 Features
Han® A series
09200100296 Applications
There are a lot of HARTING
09200100296 Heavy Duty Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
