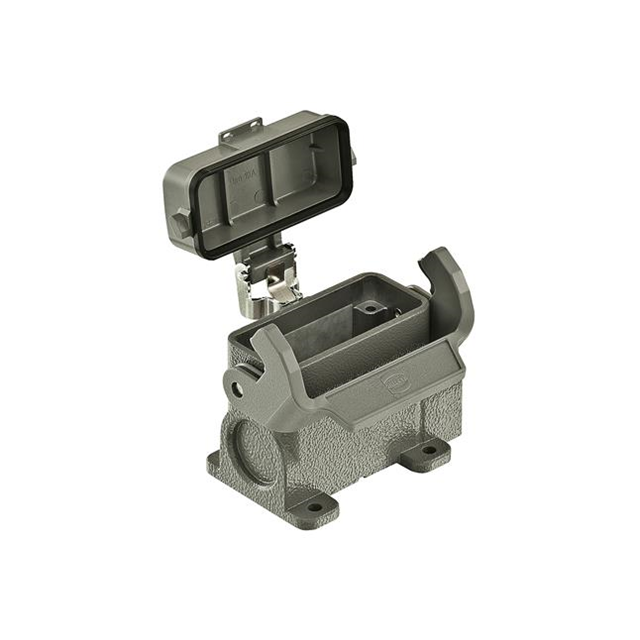

09200100221
Or copy the link below:
- Mfr.Part #
- 09200100221
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ10A PG16
- Stock
- 8
- In Stock ：
- 8
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Series :
- Han® A
- Housing Material :
- Aluminum, Die Cast
- Thread Size :
- PG16
- Option :
- GENERAL PURPOSE
- Ratings :
- Dust Tight, IP65, Water Resistant
- Operating Temperature :
- -40°C~125°C
- IEC Conformance :
- No
- Housing Color :
- Gray
- Packaging :
- Bulk
- Style :
- Side Entry
- Contact Finish - Mating :
- NOT SPECIFIED
- DIN Conformance :
- No
- Factory Lead Time :
- 4 Weeks
- Feature :
- Cover
- Housing Finish :
- Powder Coated
- Mount :
- Surface Mount
- Contact Material :
- NOT SPECIFIED
- Lock Location :
- Locking Clip (1) on Base Bottom
- Size :
- 10A
- Size / Dimension :
- 2.500Lx1.969W x 2.047 H 63.50mmx50.00mmx52.00mm
- Pbfree Code :
- yes
- Connector Type :
- Base - Box Mount
- Height :
- 51.9938mm
- MIL Conformance :
- No
- Ingress Protection :
- IP65 - Dust Tight, Water Resistant
- RoHS Status :
- ROHS3 Compliant
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Datasheets
- 09200100221
4 Weeks Bulk Han® A Base - Box Mount Aluminum, Die Cast Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Gray
09200100221 Overview
Packaging for this item is Base - Box Mount.To package the product, a Bulk case is used.The product is a member of the Han® A Series.It is more powerful in many ways due to its Cover feature.It is mounted by Surface Mount.It operates at an operating temperature of -40°C~125°C.
09200100221 Features
Han® A series
09200100221 Applications
There are a lot of HARTING
09200100221 Heavy Duty Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
