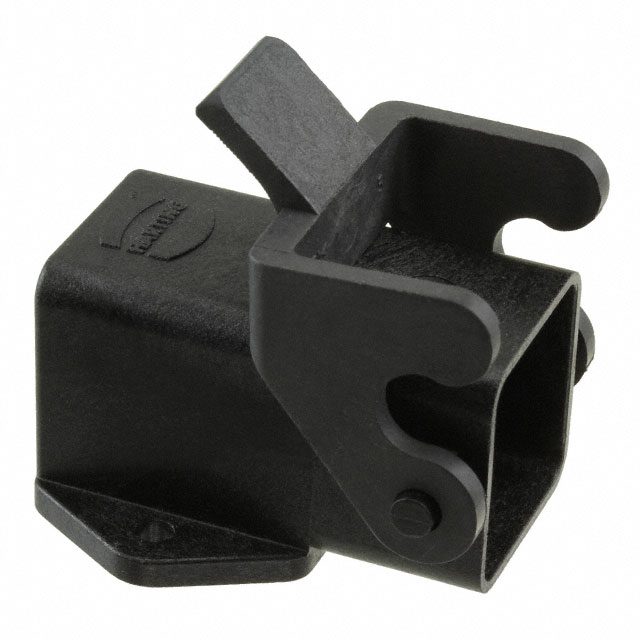

09200030827
Or copy the link below:
- Mfr.Part #
- 09200030827
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE SIDE ENTRY SZ3A
- Stock
- 22
- In Stock ：
- 22
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Height :
- 26.4922mm
- Connector Type :
- Base - Panel Mount 90°
- Housing Color :
- Black
- Contact Finish - Mating :
- NOT SPECIFIED
- Series :
- Han® A
- IEC Conformance :
- No
- Housing Material :
- Polycarbonate (PC)
- Operating Temperature :
- -40°C~125°C
- Mount :
- Base
- Pbfree Code :
- yes
- Factory Lead Time :
- 4 Weeks
- Ratings :
- Dust Tight, IP44, IP65, Water Resistant, Waterproof
- Contact Material :
- NOT SPECIFIED
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- RoHS Status :
- ROHS3 Compliant
- MIL Conformance :
- No
- Style :
- Side Entry
- Size / Dimension :
- 1.575Lx1.102W x 1.043 H 40.00mmx28.00mmx26.50mm
- Lock Location :
- Locking Clip (1) on Base Bottom
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Packaging :
- Bulk
- Size :
- 3A
- Ingress Protection :
- IP65/67 - Dust Tight, Water Resistant, Waterproof
- Datasheets
- 09200030827
4 Weeks Bulk Han® A Base - Panel Mount 90° Polycarbonate (PC) Side Entry Locking Clip (1) on Base Bottom -40°C~125°C Black
09200030827 Overview
Packaging is in the form of Base - Panel Mount 90°.A Bulk case is used to package the product.A product of the Han® A Series, it belongs to the range of products of that series.Base represents the mounting point for the part.-40°C~125°C Operating Temperature is the default operating temperature for the device.
09200030827 Features
Han® A series
09200030827 Applications
There are a lot of HARTING
09200030827 Heavy Duty Connectors applications.
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
- All Electrical Machinery
- Refrigeration control
