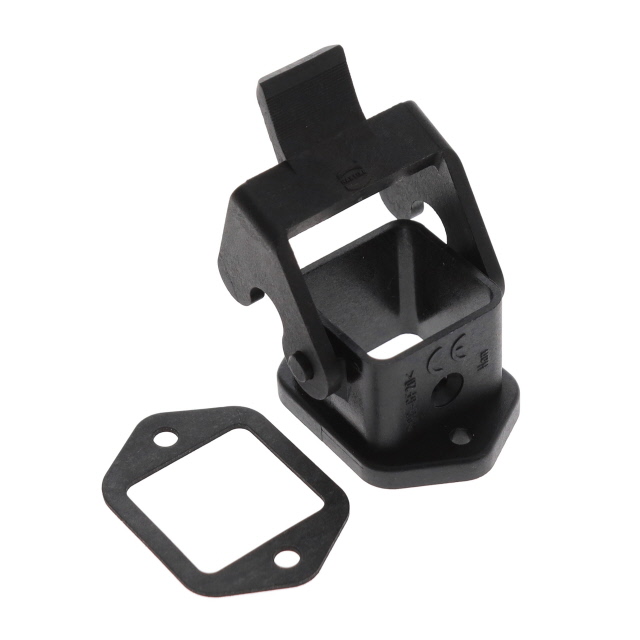

09200030327
Or copy the link below:
- Mfr.Part #
- 09200030327
- Manufacturer
- HARTING
- Package / Case
- Datasheet
- Download
- Description
- CONN BASE BOTTOM ENTRY SZ3A
- Stock
- 52
- In Stock ：
- 52
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- HARTING
- Product Category :
- Heavy Duty Connector Housings, Hoods, Bases
- Housing Color :
- Black
- Packaging :
- Bulk
- Option :
- GENERAL PURPOSE
- Lock Location :
- Locking Clip (1) on Base Bottom
- Height :
- 23.0124mm
- Ingress Protection :
- IP67 - Dust Tight, Waterproof
- Style :
- Bottom Entry
- Contact Finish - Mating :
- NOT SPECIFIED
- MIL Conformance :
- No
- Factory Lead Time :
- 4 Weeks
- Pbfree Code :
- yes
- Operating Temperature :
- -40°C~125°C
- RoHS Status :
- ROHS3 Compliant
- Ratings :
- Dust Tight, IP67, Waterproof
- Lead Free :
- Lead Free
- Body Material :
- PC, Plastic, Polycarbonate
- Size :
- 3A
- Series :
- Han® A
- Connector Type :
- Base - Panel Mount
- Material :
- Plastic
- REACH SVHC :
- No SVHC
- Housing Material :
- Thermoplastic
- DIN Conformance :
- No
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Orientation :
- Straight
- Size / Dimension :
- 1.102Lx1.575W x 0.906 H 28.00mmx40.00mmx23.00mm
- Datasheets
- 09200030327
4 Weeks Bulk Han® A Base - Panel Mount Thermoplastic Bottom Entry Locking Clip (1) on Base Bottom -40°C~125°C Black
09200030327 Overview
The packaging contains Base - Panel Mount.It has been determined that a Bulk case is necessary to package the product.There is a product in the Han® A Series.As a result, the device runs at -40°C~125°C Operating Temperature.
09200030327 Features
Han® A series
09200030327 Applications
There are a lot of HARTING
09200030327 Heavy Duty Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
