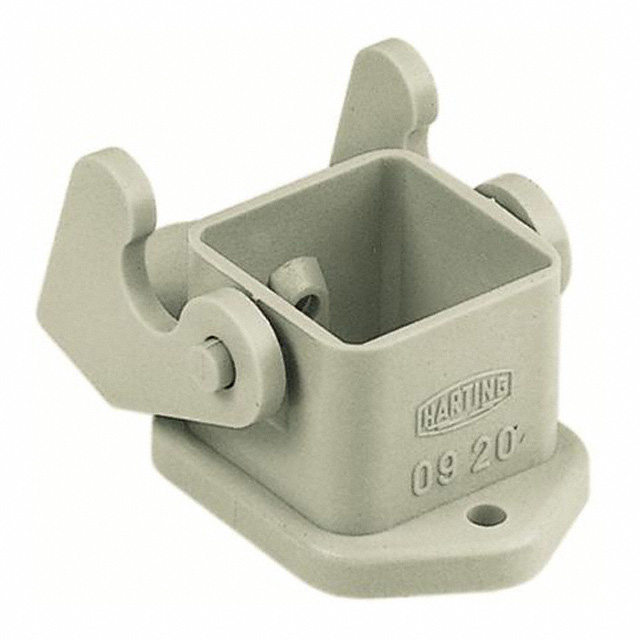

09200030320

Manufacturer :

HARTING

Product Category :

Heavy Duty Connector Housings, Hoods, Bases

REACH SVHC :

No SVHC

Orientation :

Straight

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Pbfree Code :

yes

DIN Conformance :

No

Depth :

61mm

Size / Dimension :

1.102Lx1.575W x 0.906 H 28.00mmx40.00mmx23.00mm

Height :

23.0124mm

Style :

Bottom Entry

Packaging :

Bulk

Current Rating :

3A

Housing Material :

Thermoplastic

Contact Gender :

FEMALE

Ratings :

Dust Tight, IP65, IP67, Waterproof

Lock Location :

Locking Clip (1) on Base Bottom

Operating Temperature :

-40°C~125°C

Hole Diameter :

3.2 mm

Material :

Resin, Thermoplastic

Ingress Protection :

IP67 - Dust Tight, Waterproof

MIL Conformance :

No

IEC Conformance :

No

Number of Positions :

4

Option :

GENERAL PURPOSE

Series :

Han® A

Connector Type :

Base - Panel Mount

Body Material :

Metal, PC, Plastic, Polycarbonate

Factory Lead Time :

4 Weeks

Color :

Grey

RoHS Status :

ROHS3 Compliant

Termination :

CABLE

Contact Finish - Mating :

NOT SPECIFIED

Housing Color :

Gray
